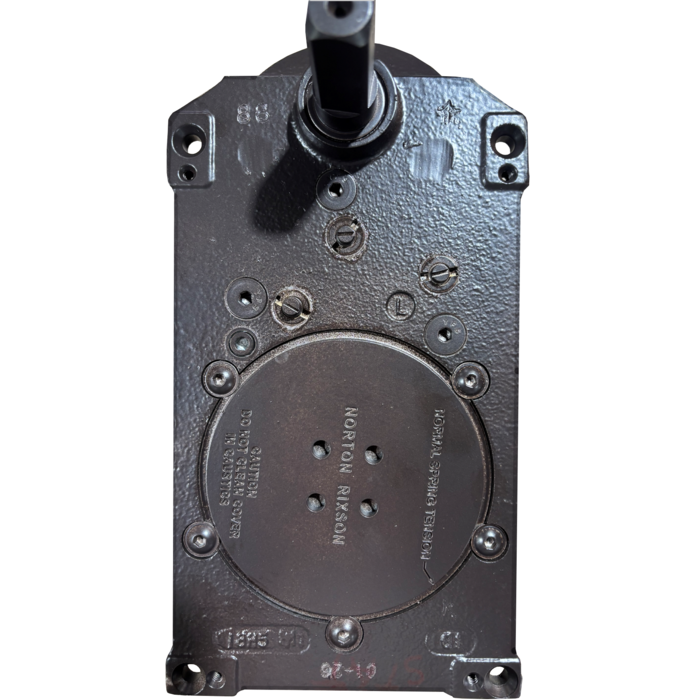

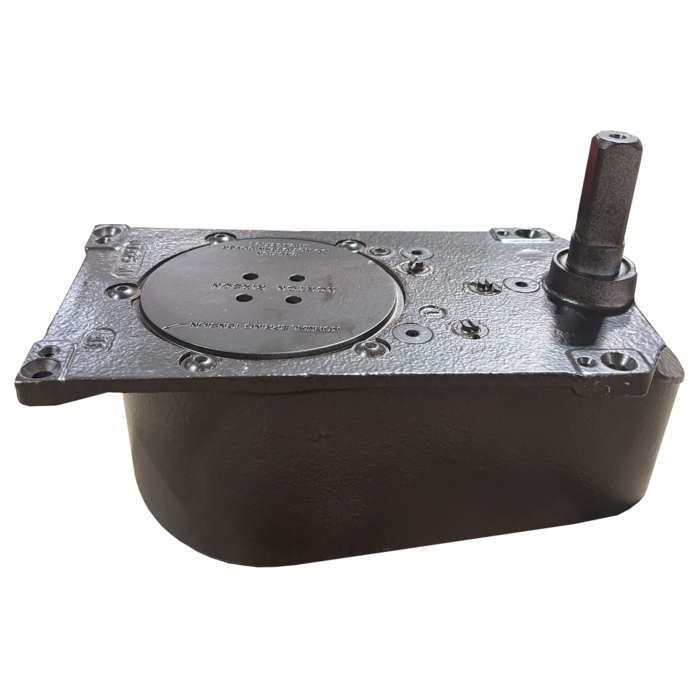

Rixson H28S

Heavy Duty Center Hung Floor Closer Body

SKU: H28S

Price: $708.00

Choose Options Below

The Rixson H28 Series is the smart choice for controlling extremely heavy center-hung doors. H28's are ideal for use with thick, bronze or stone clad doors, and work well on interior or exterior applications. See more product information below

  • In Stock!
  • Order in the next hour 39 minutes to Ship TODAY
  • FREE Same-Day ShippingWhen ordered before 3PM ET
  • No Hassle Returns
  • ×
    Getting shipping methods...

Have a question about this product?

Price: $708.00

Choose Options

Start selecting options

Use the menu on the right to select available options.
After all options have been chosen, you can add to cart.

Choose Handing:

Help Me Decide

  • Bath/Bedroom Privacy function lock body only.
  • Latchbolt retracted by lever from either side unless outside is locked by inside thumbturn.
  • Turning inside lever or closing door unlocks outside lever.
  • To unlock from outside, remove emergency button, insert emergency thumbturn furnished in access hole and rotate.
  • Inside knob/lever is always free for immediate egress.
  • Lock bodies are furnished with mounting screws and templates only.
  • Lock trim, armored front, strike and cylinders must be ordered separately.
  • For doors 1-3⁄4" thick standard.
  • Backset 2-3⁄4" only.

Choose Hold Open:

Help Me Decide

Hold Open - A door closer with the capability of holding the door in the open position until manually closed. Hold Open door closers are not permitted to be used on fire door assemblies.

90º

105º

Choose Opening Degrees:

Overview

  • Single Acting
  • Handed
  • For exterior or interior doors
  • Selective hold open (SHO) at same degree as dead stop.
  • For Extra Heavy Doors
  • For door weight to 1000 lbs.
  • For door sizes up to 4' 0" x 8' 6"

Available Options: Choose Options Above

  • Handing: info icon

    • Left Hand (LH)
    • Right Hand (RH)
  • Hold Open: info icon

    • SHO (Selective Hold-Open)
  • Opening Degrees:

    • 90 Degrees
    • 105 Degrees
  • For thick, heavy doors
  • Thrust bearing for greater load capacity
  • Built-in positive dead stop at 90° prevents door from swinging beyond the opening degree
  • Separate and independent valves for closing speed, latch speed and backcheck
  • Uses cast iron cement case
  • Body includes 41204 thrust bearing package
  • Not allowed for fire rated doors
  • Frame or applied stop required, such as #60131

Available as a special order with 85°, 95° or 105° opening swing, CWF, DA, ELS, SC or PH options. Contact us directly to arrange for your special order.

Reviews

Q&A

Instructions & Templates

Click on the links below to download helpful instructions & templates for this product

Heavy Duty Center Hung Floor Closer Body

Scroll for More Product Information
