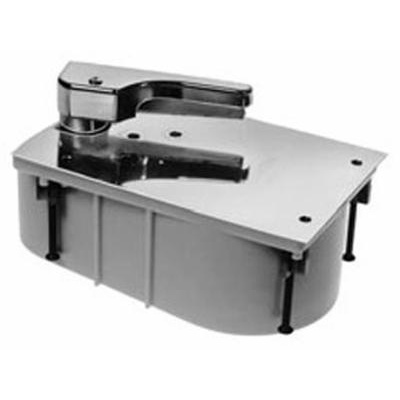

Rixson HM27-Complete 3/4" Offset Floor Closer

SKU: HM27-Complete - Includes All Components or Customize Below The Rixson's HM27 series is designed for stock hollow metal doors and frames with standard weight 4-1/2" hinge preparation. Includes three special 4-1/2" ball bearing hinges with 3/4" offset. A closer package can include everything that you need for a new installation.

Change or Remove Components (optional)

  • Instructions & Templates for this Kit
Body

Product Overview

  • Single Acting
  • Handed
  • For exterior or interior doors
  • For door weight to 450 lbs.
  • For door Width up to 4'0""

Door size & weight guidelines are determined using the appropriate number of intermediate pivots.

Technical Specifications

  • Built-in positive dead stop prevents door from swinging beyond the desired opening degree (select 85, 90 or 105°)
  • Separate and independent valves for closing speed, latch speed and backcheck
  • Available non hold-open (NHO) or selective hold open (SHO) at same degree as dead stop
  • Uses cycolac cement case
  • Vertical door adjustment
  • Intermediate pivot required
  • Doors up to 90" in height should use one intermediate pivot. Each additional 30" warrants another intermediate pivot

Configurations including DAPH, CWF, ELS, SC and PH can be found in our extensive inventory. Also available as a special order with 95° opening swing, CWF, DA, ELS, SC or PH options as required. Contact us directly to arrange for your special order.
Cement Case

Product Overview

Cycolac cement case for use with 25/26/27/28 Series closers.

Cement case includes closer mounting screws.


Technical Specifications

Case size: 11-1/8" L x 5-7/8" W x 4-1/16" H

Templating and instructional information can be found with the floor closer body section.

Floor Plate

Product Overview

Floor plate package for 27S & 127S Series offset floor closers.

Package includes mounting screws.


Technical Specifications

Plate size: 9-7/8" x 6-1/8"

Available as a special order with other finishes. Contact us directly to arrange for your special order.
Arm Package

Product Overview

3/4" Offset arm package for Q option closers used on hollow metal doors.
Includes arm cap and mounting hardware.

Technical Specifications

Available as a special order with other finishes. Contact us directly to arrange for your special order.
Hinge Set

Product Overview

Application

  • Special 3/4" Offset to match floor closer pivot point
  • 4-1/2" x 4-1/2" Ball Bearing hinges
  • Reversible for left or right hand application
  • For door weights to 250 lbs. when used in specific applications

Standard hinge set supplied with HM27 and HM51 Series shallow floor closers.

Technical Specifications

Product Notes:
Available as a special order with other finishes. Contact us directly to arrange for your special order.
