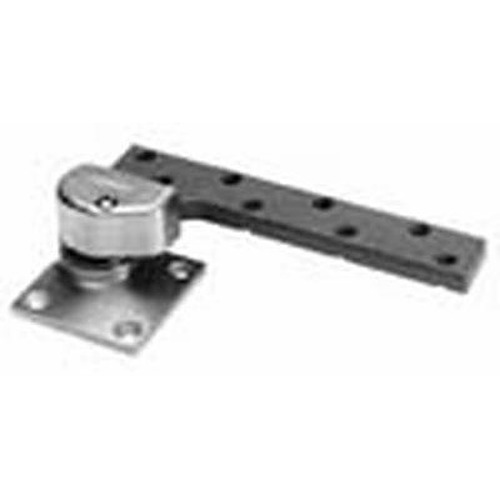

Rixson L147-2-1/4

Special Order Heavy Duty 3/4" Offset Pivot Set for Lead Lined 2-1/4" Thick Doors

Get a Quote
Special Order non-stock item Requires 6 week lead time

SKU: L147-2-1/4

Choose Options Below

The Rixson L147, 3/4"offset pivot set is for 2-1/4" thick lead-lined/heavy/high traffic interior and exterior doors weighting up to 1000 lbs. and up to 3' '6" wide. Bottom pivot mortised into floor. Standard top pivot L180 included.

Because this is not a stock item we must order it specifically for you and we will be unable to accept a return unless the item is defective as determined by the factory it was bought from.

  • Special Order
  • FREE Shipping

Have a question about this product?

Start selecting options

Use the menu on the right to select available options.
After all options have been chosen, you can add to cart.

Choose Handing:

Left Hand (LH)
Right Hand (RH)

Help Me Decide

The hand of a door is always determined from the outside.



If the door swings away from you to the left, it is a Left Hand door

If the door swings away from you to the right, it is a Right Hand door

Choose Finish:

Polished Brass (US3) Polished Brass (US3)
Satin Brass (US4) Satin Brass (US4)
Satin Bronze (US10) Satin Bronze (US10)
Oil Rubbed Bronze (US10B) Oil Rubbed Bronze (US10B)
Polished Chrome (US26) Polished Chrome (US26)
Satin Chrome (US26D) Satin Chrome (US26D)

Overview

Special order item with 8 week lead time

For offset applications

  • For exterior or interior doors
  • For lead lined, heavy or high traffic doors
  • For door weights up to 1000 lbs
  • For door width up to 3'6"
  • Normally supplied for a 2-1/4" thick door

Available Options: Choose Options Above

More Info

  • Standard top pivot L180 included
  • Bottom pivot mounts directly to floor
  • Designed for lead-lined doors with lead in center of door
  • Screw holes in top pivot and bottom arm designed to straddle lead lining
  • Non-ferrous base metal
  • Doors over 60" require the use of one intermediate pivot. Every additional 30" of door height warrants another intermediate pivot such as ML19
  • 3/4" offset (measured from centerline of pivot to face of door)
  • Door edges must be beveled 1/8" in 2"
  • Furnished with wood and machine screws
  • Doors will swing 180, trim permitting
