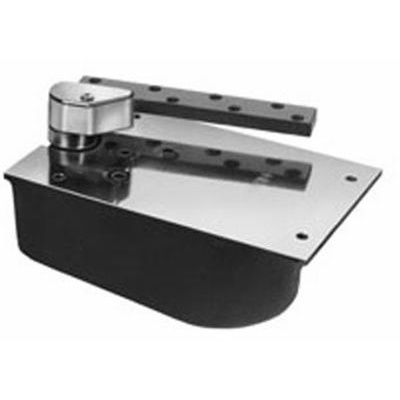

Rixson L27-Complete 3/4" Offset Closer for Lead Lined Doors

SKU: L27-Complete - Includes All Components or Customize Below The Rixson L27series 3/4"offset floor closer for lead-lined/heavy/high traffic exterior or interior doors doors weighting up to 1500 lbs. Heavy-duty bottom arm and optional top pivot with screw holes designed to straddle lead lining in doors. Complete closer packages can include everything that you need for a new installation.

Change or Remove Components (optional)

Instructions & Templates for this Kit

Body

Offset Floor Closer Body for Lead Lined Doors (L27)

Product Overview

Single Acting
Handed
Exterior or Interior Doors
For Lead-Lined/Heavy/High Traffic Doors
Weight up to 1500 lbs.
For door width up to 4'0"

Door size & weight guidelines are determined using the appropriate number of intermediate pivots.

Technical Specifications

Heavy-duty bottom arm and optional top pivot with screw holes designed to straddle lead lining
Available standard for 1-3/4" doors
Also available for 2", 2-1/2" or 3" doors
Thrust bearing for greater load capacity
Built-in positive dead stop at 90° prevents door from swinging beyond the opening degree
Separate and independent valves for closing speed, latch speed and backcheck
Normally supplied with selective hold open (SHO) at same degree as dead stop
Uses cast iron cement case
Body includes 41204 thrust bearing package
Vertical door adjustment
Intermediate pivot required
Doors up to 90" in height should use one intermediate pivot. Each additional 30" warrants another intermediate pivot

Available as a special order with 85°, 95° or 105° opening swings, and with CWF, DA, ELS, NHO, SC or PH options. Contact us directly to arrange for your special order.

Product Overview

Cast iron cement case for use with L27/H27/H28 Series closers.

Cement case includes closer mounting screws.

Also recommended for environmental applications where cycolac cement cases are inappropriate for 25/26/27/28 series closers.

Technical Specifications

Case size: 11-1/8" L x 5-7/8" W x 4-1/16" H

Templating and instructional information can be found with the floor closer body section.

None [Subtract $86.00]

Floor Plate

27/127 S Floor Plate (274750)

Product Overview

Floor plate package for 27S & 127S Series offset floor closers.

Package includes mounting screws.

Technical Specifications

Plate size: 9-7/8" x 6-1/8"

Available as a special order with other finishes. Contact us directly to arrange for your special order.

None [Subtract $45.00]

Arm Package

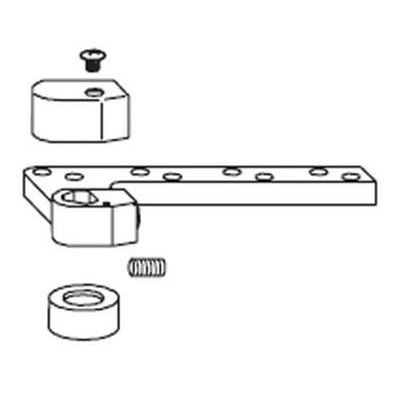

3/4" Offset Arm Package (252051)

Product Overview

3/4" Offset Arm package for 1-3/4" lead lined doors.

Handed
Includes arm cap and mounting screws

Technical Specifications

Screw holes designed to straddle lead in the middle of the door.

Available as a special order for other door thicknesses and with other finishes. Contact us directly to arrange for your special order.

None [Subtract $86.00]

Optional Intermediate Pivot

Offset Intermediate Pivot for Lead Lined Doors (ML19)

Product Overview

For Offset Applications

Full Mortise
For Lead-Lined, Heavy or High Traffic Doors
Handed

Technical Specifications

Designed for doors with lead in center of door
Screw holes designed to straddle the lead lining
Supplied as shown to accomodate door thickness of 1-3/4"
Load-bearing
Non-ferrous base material
Furnished with wood and machine screws

Available to accommodate door thicknesses of 2", 2-1/4", 2-1/2", or 3" and different finishes than shown. Contact us directly to arrange for your special order.

Product Overview

For Offset Applications on Lead-lined, heavy weight or high traffic doors.

Full Mortise
Non-handed

Technical Specifications

Standard top pivot for L147, L117 pivots, L27 and L25 floor closers

Screw holes designed to straddle lead in the middle of the door
Non-ferrous base material
Normally supplied for 1-3/4" doors
3/4" offset (measured from centerline of pivot to face of door)
Furnished with wood and machine screws

Available to accommodate door thicknesses of 2", 2-1/4", 2-1/2", or 3" and different finishes than shown. Contact us directly to arrange for your special order.

Product Overview

Spindle shoulder collar for heavy duty arm packages.

Required with the use of the 41204-PKG thrust bearing.

Typical with H28 and L27 closers.

Technical Specifications

Available as a special order with other finishes. Contact us directly to arrange for your special order.

None [Subtract $46.00]
