Rixson L27 Offset Floor Closer Body for Lead Lined Doors

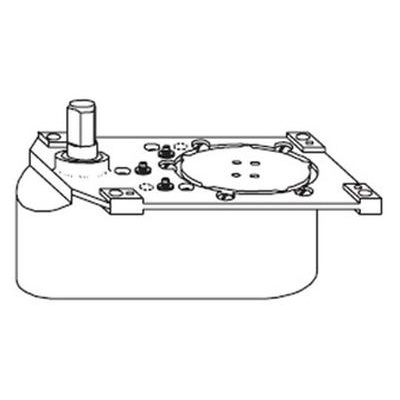

Offset Floor Closer Body for Lead Lined Doors Photo

Rixson L27 Offset Floor Closer Body for Lead Lined Doors

SKU: L27 The Rixson L27 is the smart choice for controlling extremely heavy doors. L27's are ideal for use with bronze or stone clad doors, as well as lead-lined doors found in hospital or other medical environments.

Overview
Tech Specs

Instructions & Templates

Offset Floor Closer Body for Lead Lined Doors

Serial no. / SKU: L27

Product Overview

Single Acting
Handed
Exterior or Interior Doors
For Lead-Lined/Heavy/High Traffic Doors
Weight up to 1500 lbs.
For door width up to 4'0"

Door size & weight guidelines are determined using the appropriate number of intermediate pivots.

Offset Floor Closer Body for Lead Lined Doors

Serial no. / SKU: L27

Technical Specifications

Heavy-duty bottom arm and optional top pivot with screw holes designed to straddle lead lining
Available standard for 1-3/4" doors
Also available for 2", 2-1/2" or 3" doors
Thrust bearing for greater load capacity
Built-in positive dead stop at 90° prevents door from swinging beyond the opening degree
Separate and independent valves for closing speed, latch speed and backcheck
Normally supplied with selective hold open (SHO) at same degree as dead stop
Uses cast iron cement case
Body includes 41204 thrust bearing package
Vertical door adjustment
Intermediate pivot required
Doors up to 90" in height should use one intermediate pivot. Each additional 30" warrants another intermediate pivot

Available as a special order with 85°, 95° or 105° opening swings, and with CWF, DA, ELS, NHO, SC or PH options. Contact us directly to arrange for your special order.
