Rixson MW608-Complete Center Hung Overhead Closer

SKU: MW608-Complete - Includes All Components or Customize Below Rixson MW608 complete center hung overhead closer. For use on interior and exterior low to medium usage wood doors and metal frames. Package includes closer body, arm, mounting kit, cover plate and bottom pivot. Complete closer packages can include everything that you need for a new installation. For door weights up to 200lbs.

Change or Remove Components (optional)

  • Instructions & Templates for this Kit
Body

Product Overview

  • Single or Double Acting
  • For exterior or interior doors, for low to medium usage
  • For doors with weight to 200 lbs.
  • Non-handed
  • Exterior Door Size 3' 6" x 8' 0"
  • Interior Door Size 3' 8" x 8' 0"

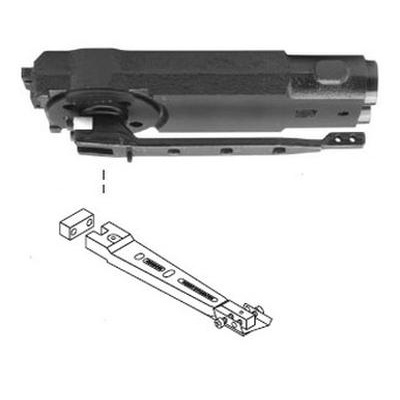

  • Photo shown with arm (not included)

Installation codes:
AW - Aluminum frame, wood door
W - Wood door, wood frame
M - Metal door, metal frame
MW - Metal frame, wood door
0 - Aluminum door, aluminum frame


Technical Specifications

Product Description & Features

  • Available in non-hold open (door swings to 130° each direction).
  • Available in hold open models—specify 90° or 105°
  • Should always be used with auxiliary stop such as #60131
  • 1-3/4 Doors only
  • Adjustable closing and latch speeds.
  • Not available with cold weather fluid or delayed action
  • On single acting center hung applications frame stop is required - order separately.

Available with a 1/2" ELS option. Contact us directly to arrange for your special order.
Mounting Kit

Product Overview

Closer mounting kit for 608 Series Closers for wood frame application.

Technical Specifications

There are no technical specifications for this product.
Cover Plate

Product Overview

Cover plate for 608 Series Closers.

Plate dimensions: 5" x 14" (approx)


Technical Specifications

There are no technical specifications for this product.
Arm Package

Product Overview

End load arm package for 608 Series Closers for wood doors.

Technical Specifications

There are no technical specifications for this product.
Pivot

Product Overview

Bottom pivot package for 608 Series overhead concealed closers.

Technical Specifications

There are no technical specifications for this product.
Optional Stop

Product Overview

Surface applied stop for offset hung or single door applications where there is no stop.

Technical Specifications

There are no technical specifications for this product.
Optional Wood door caps

Product Overview

Optional wood door end caps for W700 & W800 Series Overhead Concealed Closer installations.

Technical Specifications

There are no technical specifications for this product.
