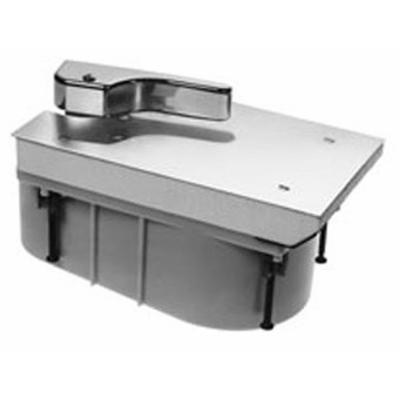

Rixson Q27-Complete 3/4" Offset Quick Change Closer

SKU: Q27-Complete - Includes All Components or Customize Below The Rixson Q27 3/4" offset floor closer with surface mounted bottom arm allows closer removal without demounting door. For exterior and interior doors weighting up to 350 lbs.and 1-3/4" thick. A closer package can include everything that you need for a new installation.

Change or Remove Components (optional)

  • Instructions & Templates for this Kit
Body

Product Overview

  • Single Acting
  • Handed
  • For exterior and interior doors
  • For door weight to 350 lbs.
  • For door Width up to 4'0"

Technical Specifications

Surface mounted bottom arm allows closer removal without demounting door
  • For floor plate installations
  • Door must be 1-3/4" in thickness
  • Requires One M19 or similar intermediate pivot
  • Doors up to 90" in height must use one intermediate pivot. Each additional 30" or doors over 195 lbs. warrants another intermediate pivot
  • Built-in positive stop at 90° prevents door from swinging beyond the opening degree
  • Separate and independent valves for closing speed, latch speed and backcheck
  • Normally supplied selective hold open (SHO) at same degree as dead stop
  • Uses cycolac cement case
  • Vertical door adjustment
Also available as a special order with 85°, 95° or 105° opening swing, CWF, DA or PH options as required. Contact us directly to arrange for your special order.

Related Documents
Cement Case

Product Overview

Cycolac cement case for use with 25/26/27/28 Series closers.

Cement case includes closer mounting screws.


Technical Specifications

Case size: 11-1/8" L x 5-7/8" W x 4-1/16" H

Templating and instructional information can be found with the floor closer body section.

Floor Plate

Product Overview

Floor plate package for Q27 Series offset floor closers.

Package includes mounting screws.


Technical Specifications

Plate size: 10-7/8" x 6-1/8"

Available as a special order with other finishes. Contact us directly to arrange for your special order.
Arm Package

Product Overview

3/4" Offset arm package for Q option closers used on wood doors.
Includes arm cap and mounting hardware.

Technical Specifications

Available as a special order with other finishes. Contact us directly to arrange for your special order.
Top Pivot

Product Overview

For 3/4" offset standard duty applications
  • Full mortise
  • Non handed

Technical Specifications

Standard top pivot for most offset pivot sets and floor closers
  • Oil-impregnated sintered bronze bearing
  • Non-ferrous base metal
  • 3/4"(19mm) offset (measured from centerline of pivot to face of door)
  • Furnished with wood and machine screws
Available in all standard architectural finishes. Contact us directly to order a finish not shown.

Related Documents
Intermediate Pivot

Product Overview

3/4" offset full mortise intermediate pivot

  • Handed

Technical Specifications

  • Not load-bearing
  • Maintains door alignment
  • Non-ferrous base metal
  • 3/4" offset
  • Furnished with wood and machine screws

Available in all standard architectural finishes. Contact us directly to order a finish not shown.

Related Documents
