Rixson Q27 Offset Floor Closer Body with Q Option

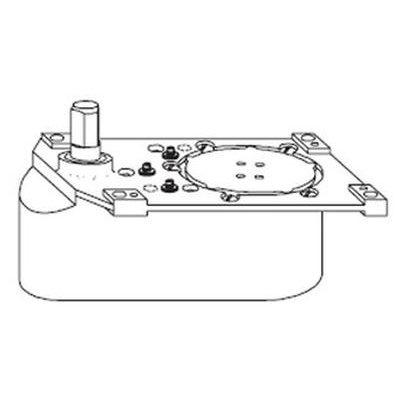

Offset Floor Closer Body with Q Option Photo

Rixson Q27 Offset Floor Closer Body with Q Option

SKU: Q27 An ideal choice for a heavy duty floor closer in applications that don't allow the easy removal of a door. When installed, the Rixson Q27 floor closer can easily be removed for service or adjustment without having to dismount the door.

Overview
Tech Specs

Instructions & Templates

Offset Floor Closer Body with Q Option

Serial no. / SKU: Q27

Product Overview

Single Acting
Handed
For exterior and interior doors
For door weight to 350 lbs.
For door Width up to 4'0"

Offset Floor Closer Body with Q Option

Serial no. / SKU: Q27

Technical Specifications

Surface mounted bottom arm allows closer removal without demounting door

For floor plate installations
Door must be 1-3/4" in thickness
Requires One M19 or similar intermediate pivot
Doors up to 90" in height must use one intermediate pivot. Each additional 30" or doors over 195 lbs. warrants another intermediate pivot
Built-in positive stop at 90° prevents door from swinging beyond the opening degree
Separate and independent valves for closing speed, latch speed and backcheck
Normally supplied selective hold open (SHO) at same degree as dead stop
Uses cycolac cement case
Vertical door adjustment

Also available as a special order with 85°, 95° or 105° opening swing, CWF, DA or PH options as required. Contact us directly to arrange for your special order.
