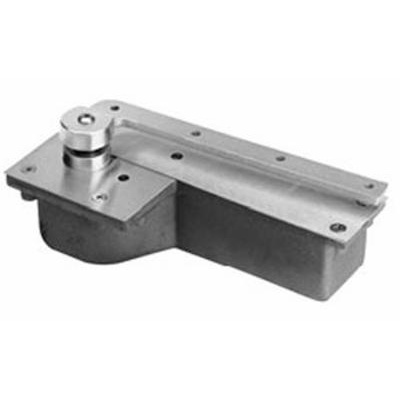

Rixson Uni-Complete 3/4" Offset Uni-Chek

SKU: Uni-Complete - Includes All Components or Customize Below The Rixson Uni-Chek 3/4" offset floor closer series for low/medium traffic interior doors. With 2 models to choose from they will accommodate doors up to 175 lbs. and 48" wide. Complete closer packages can include everything that you need for a new installation

Change or Remove Components (optional)

Instructions & Templates for this Kit

Body

Offset Hung Floor Closer Body (UNI-CHEK)

Product Overview

Single Acting
Handed
For low/medium traffic interior doors
Door weight up to 150 lbs. - Use Model 67
Door weight up to 175 lbs. - Use Model 68
For door widths up to 3' 4" - Use Model 67
For door widths up to 4' 0" - Use Model 68

Technical Specifications

Available non hold-open (NHO), or automatic hold open (AHO) at 90°
Intermediate pivot required: Use model 119 or similar. For fire rated assemblies, use FM19 or similar
3/4" offset only
Uses steel cement case
Single valve closing speed adjustment
Can swing to 180°, trim permitting
Available for fire door assemblies - Special Order
Doors over 60" in height require the use of one intermediate pivot. Every 30" of door height warrants an additional intermediate pivot
For 1-3/4" doors
For stronger spring size to accommodate wider doors - Select Model 68

Model 67 is available as a special order with PH option. Models 67 & 68 are available with ELS or fire-rated options. Contact us directly to arrange for your special order.

Product Overview

Cast iron cement case for 67/68 Uni-Chek series closers.

Handed.
Left hand case shown at left, right hand at right.
Cement case includes closer mounting screws.

Technical Specifications

Case height: 2-27/32"

Templating and instructional information can be found with the floor closer body section.

None [Subtract $54.00]

Floor Plate

Uni-Chek Floor Plate (654050)

Product Overview

Floor plate package for 67/68 Uni-Chek Series offset floor closers.

Package includes two piece floor plate and mounting screws.

Technical Specifications

Available as a special order with other finishes. Contact us directly to arrange for your special order.

None [Subtract $41.00]

Arm Package

Uni-Chek Arm Package (652050)

Product Overview

3/4" offset arm package for standard doors.

Used with 67/68 Series and 127 Series closers
Handed
Includes arm cap and mounting screws

Technical Specifications

Available as a special order with other finishes. Contact us directly to arrange for your special order.

None [Subtract $86.00]

Optional Add On

Offset Intermediate Pivot (119)

Product Overview

For Offset Applcations

Non-load bearing
3/4" offset
Used with Uni cheks and 117, 117-1/4 pivot sets

Technical Specifications

Not load-bearing
Available 3/4" offset only
Non-ferrous base material
Used with 117, 117-1/4, 195, UNI closers, 127 closer
Maintains door alignment
Furnished with wood and machine screws

Available in all standard architectural finishes. Contact us directly to order a finish not shown.

Product Overview

For 3/4" offset standard duty applications

Full mortise
Non handed

Technical Specifications

Standard top pivot for most offset pivot sets and floor closers

Oil-impregnated sintered bronze bearing
Non-ferrous base metal
3/4"(19mm) offset (measured from centerline of pivot to face of door)
Furnished with wood and machine screws

Available in all standard architectural finishes. Contact us directly to order a finish not shown.
