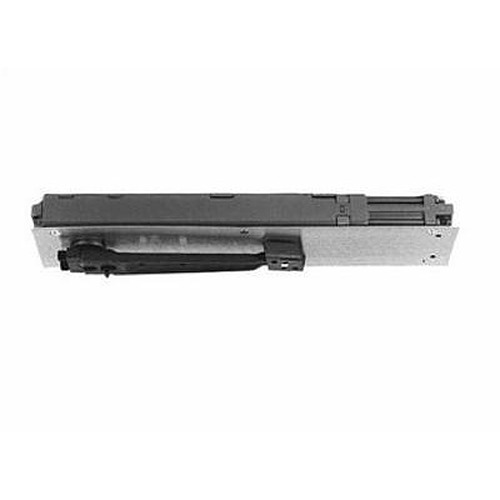

Rixson W800-Complete

Double Acting Overhead Closer

Quick Product Details

  • Overhead Closer
  • For wood doors
  • Center-Hung
  • Standard Duty
  • Double Acting
Starting price: $3,133.00 /each

SKU: W800-Complete can include all components

Choose Options Below

This Rixson W800-Complete is a product of the Rixson 800 series overhead concealed closers which is specifically for wooden doors and frames. The door weight may be up to two-hundred pounds.

  • Stock Item
  • FREE Shipping
  • No Hassle Returns
  • ×
    Getting shipping methods...

Have a question about this product?

Price: $3,133.00

Start selecting options

Use the menu on the right to select available options.
After all options have been chosen, you can add to cart.

Choose Components:

1) Body:

Overhead Concealed Closer image
Buy Separately

2) Mounting Plate:

Mounting Plate image
Buy Separately


3) Cover Plate:

800 Series Cover Plate image
Buy Separately


4) Arm Package:

Arm Package for W700/W800 Series image
Buy Separately


5) Pivot:

Center Hung Pivot for aluminum door applcations image
Buy Separately


6) Optional Wood door caps:

Wood Door End Caps image
Buy Separately


Choose Finish:

613 - Duranodic Dark Bronze 613 - Duranodic Dark Bronze
626 - Satin chrome 626 - Satin chrome

Choose Hold Open:

NHO (Non Hold-Open)
AHO (Automatic Hold-Open)

Help Me Decide

No hold-open

Door does not remain open (door will swing 130 degrees in both directions)

Automatic hold-open

Door will remain open at preset degrees until manually closed

Choose Opening Degrees:

90 Degrees 90 Degrees
105 Degrees 105 Degrees

Help Me Decide

Choose Select Size:

806 - Ext 2'6" x 8' - Int 3' x 8'
807 - Ext 3' x 8' - Int 3'3" x 8'
808 - Ext 3'6" x 8' - Int 3'8" x 8'

Help Me Decide

Product: Interior Door Size: Exterior Door Size:
806 3’0” x 8’0” 2’6” x 8’0”
807 3’3” x 8’0” 3’0” x 8’0”
808 3’8” x 8’0” 3’6” x 8’0”

Overview


Suited for:

  • Exterior and interior wood doors with low to medium traffic.


Quality:

  • 2 year limited warranty

Available Options: Choose Options Above

  • Finish:

  • Hold Open: info icon

    • NHO (Non Hold-Open)
    • AHO (Automatic Hold-Open)
  • Opening Degrees: info icon

    • 90 Degrees
    • 105 Degrees
  • Select Size: info icon

    • 806 - Ext 2'6" x 8' - Int 3' x 8'
    • 807 - Ext 3' x 8' - Int 3'3" x 8'
    • 808 - Ext 3'6" x 8' - Int 3'8" x 8'

Product at A Glance

  • For wooden doors and frames
  • This closer should always be used with an auxiliary stop such as #60131
  • Adjustable closing speed
Style Overhead Closer
Application Center-hung
Door Handing Non-handed
Function Double-acting
Door Weight Up to 200 lb
Door Size Select size in above options
Door Thickness 1-3/4"

More Info


Rixson’s W800 overhead closer is for wooden doors weighing two-hundred pounds or less. This complete package will include a closer body (800), a mounting plate (198), a cover plate (8004000), an arm package (8002021), a  bottom pivot (218) and optional wood door caps. Many options are available to be selected above, such as: finish, opening degrees automatic or non hold-open, and door size to fit your specific applications.
