Roton 780-053HD Heavy Duty Half Surface Continuous Hinge
SKU: 780-053HD Roton actually extends the life of an opening and reduces replacement and maintenance costs.The Roton 780-053HD heavy duty half surface continuous hinge is low-temperature and corrosion resistant and the hinge to specify for high-traffic and high-impact areas for retrofit projects or new construction.
- Instructions & Templates

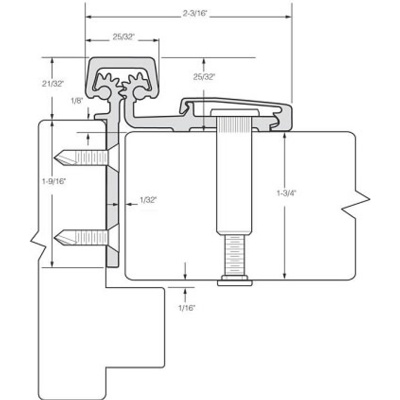

Heavy Duty Half Surface Continuous Hinge
Serial no. / SKU: 780-053HDProduct Overview
- Application-Heavy Duty for high frequency doors or heavy medium frequency doors 1-3/4 inch or 1-3/8 inch doors to 200 lbs.
- These models have the frame leaf concealed between the rabbet of the frame and the edge of the door. The door leaf is mounted to the face of the door with thru-bolts or screws.
- Can be used with any door material.
- Clearance- 5/32" minimum recommended hinge side plus standard lockside clearance.
- Fasteners- Dril-Kwik screws and thru-bolts.
- Door Reinforcement-none required.
- Frame Reinforcement-none required to 200-lbs. heavier weight use 16-gauge channel.
Heavy Duty Half Surface Continuous Hinge
Serial no. / SKU: 780-053HDTechnical Specifications
- Length -83”and 95” standard.
- Finishes – clear aluminum or dark bronze anodized.
- Frame leaf alignment rib for proper hinge location.
- Security molding.
- 1/8" inset.
- All Roton continuous geared hinges are surface applied.
- Roton hinges are always installed flush with the top edge of the door.
- Recommended 1/8” for head clearance.
- Should in-the-field modifications be required, cut only from the bottom of the hinge. Do not cut through bearings or screw holes.
- Any product modifications may void all warranties.780 Series Roton Continuous Geared Hinges meet requirements for positive pressure UL10C, UL10B and UBC7-2 Part 1
