Roton 780-112

Standard Duty Concealed Leaf Continuous Hinge

Quick Product Details

  • Continuous Hinge
  • Concealed Leaf
  • Standard Duty
  • LIMITED AVAILABILITY,PLEASE CALL 866-749-7661 FOR MORE INFORMATION.
Price: $111.00 /each

SKU: 780-112

Choose Options Below

This Roton 780-112 is a standard duty concealed leaf continuous hinge for medium frequency applications. A 5/16" clearance is required on the hinge side, plus a standard lockside clearance. Roton products include a lifetime warranty.

  • Stock Item
  • Order in the next 6 hours 56 minutes to ship TODAY
  • FREE Same-Day ShippingWhen ordered before 2PM ET
  • No Hassle Returns
  • ×
    Getting shipping methods...

Have a question about this product?

Price: $111.00

Start selecting options

Use the menu on the right to select available options.
After all options have been chosen, you can add to cart.

Choose Size and Finish-RT:

Need Help Deciding? QH chevron down
83" Clear Anodized Aluminum
83" Dark Bronze Anodized Aluminum +$32.00
95" Clear Anodized Aluminum +$25.00
95" Dark Bronze Anodized Aluminum +$68.00

Help Me Decide

83" for 7 foot doors.

95" for 8 foot doors

Overview


Quality:
  • Meet requirements for positive pressure UL10C, UL10B and UBC7-2 Part 1
  • Lifetime warranty

Available Options: Choose Options Above

  • Size and Finish-RT: info icon

    • 83" Clear Anodized Aluminum
    • 83" Dark Bronze Anodized Aluminum
    • 95" Clear Anodized Aluminum
    • 95" Dark Bronze Anodized Aluminum

Product at A Glance

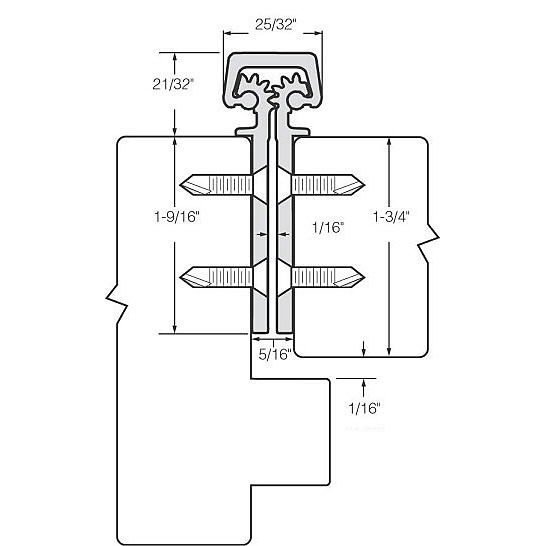

  • The leaves are concealed between the rabbet of the frame and the hinge edge of the door
  • Can be used on doors made of any material
  • Frame/Door Reinforcement are required when weight exceeds 200 lbs. - use 16-gauge channel
  • Includes Dril-Kwik (R) screws
  • All Roton continuous geared hinges are surface applied
  • Installed flush with the top edge of the door
  • Recommended 1/8” for head clearance
  • Frame and door leaf alignment ribs for proper hinge and door location
  • Should in-the-field modifications be required, cut only from the bottom of the hinge. Do not cut through bearings or screw holes
  • Any product modifications may void all warranties
Style Continuous hinge
Grade Standard Duty
Mounting Concealed leaf
Clearance 5/16" hinge side - plus standard lockside clearance

More Info


The Roton 780-112 series of hinges are designed with concealed leaves. The leaves are hidden between the rabbet of the frame and the hinge edge of the door. If the weight of the door exceeds two-hundred pounds, frame reinforcements are required and a 16 gauge channel is recommended in such an application.
