Rutherford Controls S65U

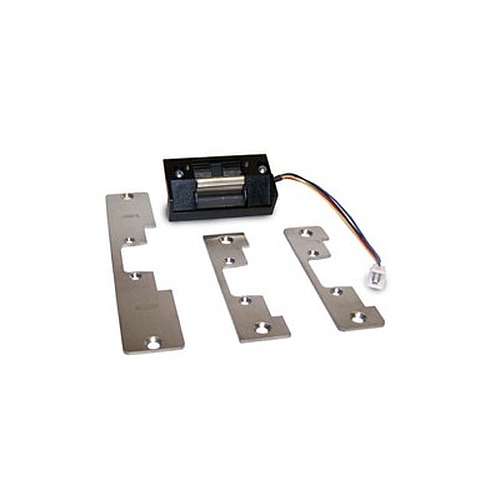

S65U Universal Electric Strike

Price: $146.00 /each

SKU: S65U

RCI's "all-in-one" 6U Series electric strike combines several key features. Standard features include a multi-voltage single solenoid, selectable lock mode (no tools necessary), horizontal adjustment, multiple faceplates and plug-in wire connectors.

QH phone left

Have a question? Need help?
Call Us: 1-866-749-7661

  • Stock Item
  • FREE Shipping
  • No Hassle Returns
  • ×
    Getting shipping methods...

Have a question about this product?

Overview

  • For hollow metal, aluminum and wood frames
  • Field selectable voltage - 12-24 volt AC or DC
  • Field Selectable Fail-Secure (FL) / Fail-Safe (FUL)
  • 1-3/16" overall depth into the frame
  • 1/4" Horizontal Adjustment
  • Supplied with three stainless steel faceplates - 32D. -1/4” x 4-7/8” ANSI Round Corner Aluminum Frames, 1-1/4” x 4-7/8” ANSI Square Corner
    Hollow Metal Frames and  1-7/16” x 7-15/16” Round Corner Aluminum or Wood Frames.

More Info

  • Supplied with two 4-7/8" ANSI faceplates - one round corner and one square corner
  • Supplied with one 8" faceplate with round corners
  • Continuous duty (DC voltage) runs silently
  • When supplied with AC current, there will be a buzz on operation
  • 12V DC - 0.375 amps
  • 24V DC - 0.190 amps
  • 12-24 AC - .280 - .565 amps
