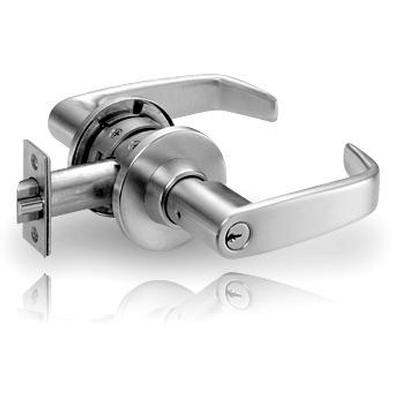

Sargent 11G16 T-Zone Extra Heavy Duty Double Cylinder Classroom lever

T-Zone Extra Heavy Duty Double Cylinder Classroom lever Photo

Sargent 11G16 T-Zone Extra Heavy Duty Double Cylinder Classroom lever

SKU: 11G16 The Sargent T-Zone (11 Line) 11G16 double cylinder classroom function lever lockset sets a higher standard for extra heavy duty commercial lever locks. The unique, T-Zone construction provides unequalled strength and durability for the most demanding applications such as schools and hospitals.

Overview
Tech Specs

Instructions & Templates

T-Zone Extra Heavy Duty Double Cylinder Classroom lever

Serial no. / SKU: 11G16

Product Overview

Double Cylinder Classroom function
Grade 1 extra heavy duty commercial cylindrical key-in-lever lock
For doors 1-3/4" thick door adjustable to 2"
Cylinder-Sargent 6 pin 1 bitted (ready to be keyed), prepped for Best IC core or Sargent Removeable core.
Backset 2-3/4" standard
Strike- 4-7/8" ANSI A-115.2 Curved Lip Strike with 1-1/4. curved lip
Latch-2-1/4" x 1-1/8" front, Stainless steel 1/2" throw
Door Prep 161 (2-1/8" cross-bore with a 2-3/4" backset, and a 1" edge-bore with a mortise 1-1/8" wide and 2-1/4" high)

T-Zone Extra Heavy Duty Double Cylinder Classroom lever

Serial no. / SKU: 11G16

Technical Specifications

16 Double Cylinder Classroom function
Deadlocking latch
Latchbolt by either lever unless outside lever is locked by key in inside lever
Key in outside lever only retracts latchbolt when outside lever is locked
ANSI F88
ANSI - Meets and greatly exceeds ANSI A156.2 Series 4000 - Grade 1
Non Handed
UL - UL and cUL listed to Canadian safety standards. Listed for 3 Hour Doors
Positive Pressure Meets UL 10C and UBC 7-2
ADA All levers conform to ADA requirements for barrier-free accessibility
Available in other finishes as a special order. Contact us directly to arrange your special order.
