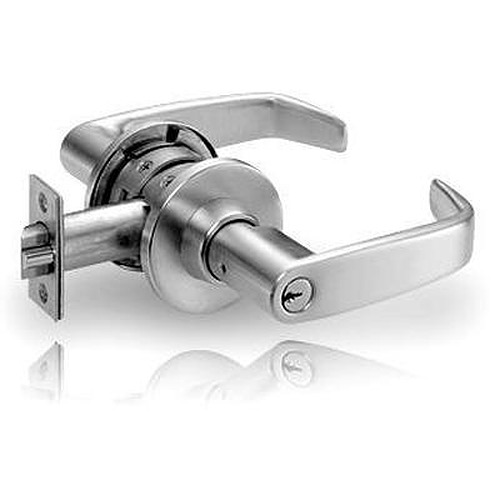

Sargent 11G16

Special Order T-Zone Extra Heavy Duty Double Cylinder Classroom lever

Quick Product Details

  • Lever Set
  • Extra Heavy Duty
  • Double Cylinder Classroom function
Price: $636.00 /each
Special Order non-stock item Requires 6 week lead time

SKU: 11G16

Choose Options Below

This Sargent 11G16 is a lever lock that operates with the double cylinder classroom function. The outside lever is locked and unlocked by key on the inside lever. Inside lever as well as a key in the outside lever, or the outside lever, when it is unlocked, can operate the latch bolt. The inside lever is always unlocked.

Because this is not a stock item we must order it specifically for you and we will be unable to accept a return unless the item is defective as determined by the factory it was bought from.

  • Special Order
  • FREE Shipping

Have a question about this product?

Price: $636.00

Start selecting options

Use the menu on the right to select available options.
After all options have been chosen, you can add to cart.

Choose Finish:

Satin Chrome - 626 Satin Chrome - 626

Choose Cylinder:

LA-KD 6 Pin Cylinder Keyed Different LA-KD 6 Pin Cylinder Keyed Different
60-Prepped for Removable Core (RC). Core not included 60-Prepped for Removable Core (RC). Core not included
No Cylinder Needed (LC) Subtract -($60.50)

Help Me Decide

Sargent  6 pin LA keyway keyed different

Standard Sargent cylinder



60-prepped for Sargent brand removable core(core not included)

Large Format Removable Core Interchangeable with Sargent mortise locks, exit devices, cylindrical locks , padlocks and auxiliary locks. Easily rekeyed without disassembling entire lock

No cylinder

Cylinder not included

Choose Lever:

L L
B B

Overview


Suited for:
  • Commercial extra heavy duty applications

Quality and Safety:
  • Exceeds ANSI/BHMA 156.2 series 4000 Grade 1 durability standards
  • UL and cUL listed to Canadian safety regulations; listed for use on 3-hour doors
  • Positive Pressure - meets UL 10C and UBC 7-2
  • Meets ADA requirements for barrier free accessibility
  • 10 year limited warranty
  • Heavy duty T-Zone construction; interlocking latch
  • Deadlocking latch to prevent lock picking by credit card
  • Resists vandalism

Door preparation: (161 standard)
Convenience:
  • Includes fewer part to make for easier installation
  • Lever  needs to be rotated only 45 degrees in order to retract the latchbolt
  • Easy cylinder removal

Available Options: Choose Options Above

  • Finish:

  • Cylinder: info icon

    • LA-KD 6 Pin Cylinder Keyed Different
    • 60-Prepped for Removable Core (RC). Core not included
    • No Cylinder Needed (LC)
  • Lever:

    • L
    • B

Product at A Glance

Style Key-in-lever lock
Grade Extra Heavy Duty
Function Double Cylinder Classroom Function
- Latchbolt by either lever unless outside lever is locked by key in inside lever
-Key in outside lever only retracts latchbolt when outside lever is locked.
Handing Non-handed
Strike 4-7/8" curved-lip strike with a (standard) curved lip of 1-1/4" (ANSI A-115.2)
Latch 2-1/4" x 1-1/8" (stainless steel)
Throw 1/2"
Door Thickness 1-3/4" adjustable to 2"
Backset 2-3/4" (Standard)
Design - Rose - L style
- Lever - select above

More Info


The double cylinder classroom function lever lock is perfect for all your classroom needs. The latchbolt is operated by either the inside lever, the outside lever when unlocked, or  key in the outside lever. When rotating a key in the inside lever, the  outside lever gets locked. The inside lever remains free at all times.
