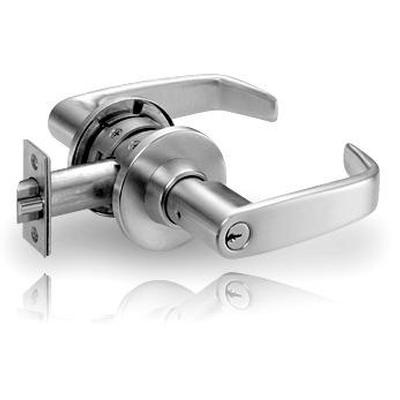

T-Zone Extra Heavy Duty Classroom Security Lever

Product Overview

• Double Cylinder Classroom Security function
• Grade 1 extra heavy duty commercial cylindrical key-in-lever lock
• For doors 1-3/4" thick door adjustable to 2"
• Cylinder-Sargent 6 pin 1 bitted (ready to be keyed), prepped for Best IC core or Sargent Removeable core.
• Backset 2-3/4" standard
• Strike- 4-7/8" ANSI A-115.2 Curved Lip Strike with 1-1/4. curved lip
• Latchbolt - Stainless steel bolt 7/8" dia. x 1/2" throw
• Door Prep` 161 (2-1/8" cross-bore with a 2-3/4" backset, and a 1" edge-bore with a mortise 1-1/8" wide and 2-1/4" high)

T-Zone Extra Heavy Duty Classroom Security Lever

Technical Specifications

• 38 Classroom Security
• Deadlocking latch
• Latchbolt by either lever unless outside lever is locked by key
• Key in either lever locks or unlocks outside lever
• When inside key locks the outside lever only the inside key can unlock the outside lever.
  The outside key only retracts the latch bolt until outside lever is unlocked by inside key
• Inside lever always operable
• Locking direction indicated on inside rose standard with this function
• ANSI - Meets and greatly exceeds ANSI A156.2 Series 4000 - Grade 1
• Non Handed
• UL and cUL listed to Canadian safety standards. Listed for 3 Hour Doors
• Positive Pressure Meets - UL 10C and UBC 7-2
• ADA - All levers conform to ADA requirements for barrier-free accessibility
  Available in other finishes as a special order. Contact us directly to arrange your special order.
