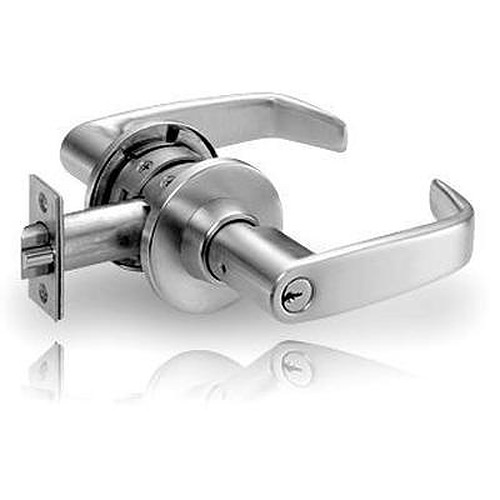

Sargent 11G38

T-Zone Extra Heavy Duty Classroom Security Lever

SKU: 11G38

Price: $387.00

Choose Options Below

The Sargent T-Zone (11 Line) 11G38 double cylinder classroom security function lever lockset sets a higher standard for extra heavy duty commercial lever locks. Classroom Security function-Key in either lever locks or unlocks outside lever. When inside key locks the outside lever only the inside key can unlock the outside lever. The outside key only retracts the latch bolt until outside lever is unlocked by inside key. Inside lever always operable. See more product information below

  • In Stock!
  • Order in the next 22 hours 14 minutes to Ship TOMORROW
  • FREE Same-Day ShippingWhen ordered before 3PM ET
  • No Hassle Returns
  • ×
    Getting shipping methods...

Have a question about this product?

Price: $387.00

Choose Options

Start selecting options

Use the menu on the right to select available options.
After all options have been chosen, you can add to cart.

Choose Finish:

Help Me Decide




Choose Cylinder:

Need Help Deciding?

Help Me Decide

LA Cylinder-6 pin keyed different. The LA cylinder is the Sargent standard cylinder.

60-Prepped for Removable Core (RC) Large format removable cores. Core not included.

Choose Lever:

Overview

  • Double Cylinder Classroom Security function.
  • Grade 1 extra heavy duty commercial cylindrical key-in-lever lock.
  • For doors 1-3/4" thick door adjustable to 2".
  • Cylinder-Sargent 6 pin LA cylinder keyed different, prepped for Best  type IC core,  Sargent Removeable core or less cylinder.
  • Backset 2-3/4" standard. The backset is the distance from the edge of the door to the center of the 2-1/8-inch bore hole in the face of the door.
  • Strike- 4-7/8" ANSI A-115.2 Curved Lip Strike with 1-1/4. curved lip.
  • Latchbolt - Stainless steel bolt 7/8" dia. x 1/2" throw.
  • Door Prep` 161 (2-1/8" cross-bore with a 2-3/4" backset, and a 1" edge-bore with a mortise 1-1/8" wide and 2-1/4" high).

Available Options: Choose Options Above

  • Finish: info icon

  • Cylinder: info icon

    • LA-KD 6 Pin Cylinder Keyed Different
    • 60-Prepped for Removable Core (RC). Core not included
    • No Cylinder Needed (LC)
  • Lever:

    • L
    • B
  • 38 Classroom Security
  • Deadlocking latch
  • Latchbolt by either lever unless outside lever is locked by key.
  • Key in either lever locks or unlocks outside lever.
  • When inside key locks the outside lever only the inside key can unlock the outside lever.
  • The outside key only retracts the latch bolt until outside lever is unlocked by inside key.
  • Inside lever always operable.
  • Locking direction indicated on inside rose standard with this function.
  • ANSI - Meets and greatly exceeds ANSI A156.2 Series 4000 - Grade 1.
  • Non Handed.
  • UL and cUL listed to Canadian safety standards. Listed for 3 Hour Doors.
  • Positive Pressure Meets - UL 10C and UBC 7-2.
  • ADA - All levers conform to ADA requirements for barrier-free accessibility.
    Available in other finishes as a special order. Contact us directly to arrange your special order.

Reviews

Q&A

Instructions & Templates

Click on the links below to download helpful instructions & templates for this product

T-Zone Extra Heavy Duty Classroom Security Lever

SARGENT 11 line T-Zone lock Installation thumbnail

SARGENT 11 line T-Zone lock Installation
