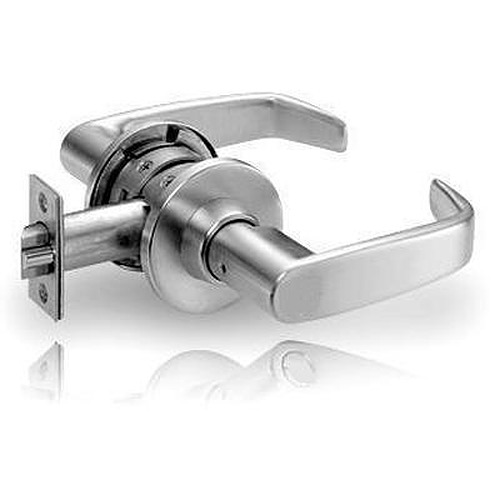

Sargent 11U15

Special Order T-Zone Extra Heavy Duty Passage lever

Quick Product Details

  • Lever Set
  • Extra Heavy Duty
  • Passage Function
Price: $384.00 /each
Special Order non-stock item Requires 6 week lead time

SKU: 11U15

Choose Options Below

This Sargent 11U15 is an 11 Line lockset which is constructed as an extra heavy duty lock to provide the necessary requirements in very demanding applications such as hospitals and schools. This specific passage model, is designed so that the inside and outside lever always remain operable.

Because this is not a stock item we must order it specifically for you and we will be unable to accept a return unless the item is defective as determined by the factory it was bought from.

  • Special Order
  • FREE Shipping

Have a question about this product?

Price: $384.00

Start selecting options

Use the menu on the right to select available options.
After all options have been chosen, you can add to cart.

Choose Finish:

Satin Chrome - 626 Satin Chrome - 626

Choose Lever:

L L
B B

Overview


Suited For:
  • Commercial extra heavy duty applications

Quality and Safety:
  • Exceeds ANSI/BHMA 156.2 series 4000 Grade 1 durability standards
  • UL and cUL listed to Canadian safety regulations; listed for use on 3-hour doors
  • Positive Pressure - meets UL 10C and UBC 7-2
  • Meets ADA requirements for barrier free accessibility
  • 10 year limited warranty
  • Heavy duty T-Zone construction; interlocking latch

Door Preparation: (161 standard)
Convenience:
  • Includes fewer part to make for easier installation
  • Lever  needs to be rotated only 45 degrees in order to retract the latchbolt

Available Options: Choose Options Above

Product at A Glance

Style Lever set
Grade Extra Heavy Duty
Function Passage Function:
- Outside and inside knobs are always free
- ANSI F75
Handing Non-handed
Strike 4-7/8" curved-lip strike with a (standard) curved lip of 1-1/4" (ANSI A-115.2)
Latch 2-1/4" x 1-1/8" (stainless steel)
Throw 1/2"
Door Thickness 1-3/4" adjustable to 2"
Backset 2-3/4" (Standard)
Design - Rose - L style
- Lever - select above

More Info


Demanding applications such as schools, hospitals and government facilities require durable locks  that will provide reliable operation at all times. Sargent T-Zone locks are known for their uncompromised quality, strength and dependability to provide your facility with worry-free satisfaction. In addition, this lock is backed by a Sargent 10 year limited warranty to ensure your peace-of-mind.

Reviews

Q&A

Instructions & Templates

Click on the links below to download helpful instructions & templates for this product

Videos

SARGENT 11 line T-Zone lock Installation thumbnail

SARGENT 11 line T-Zone lock Installation
