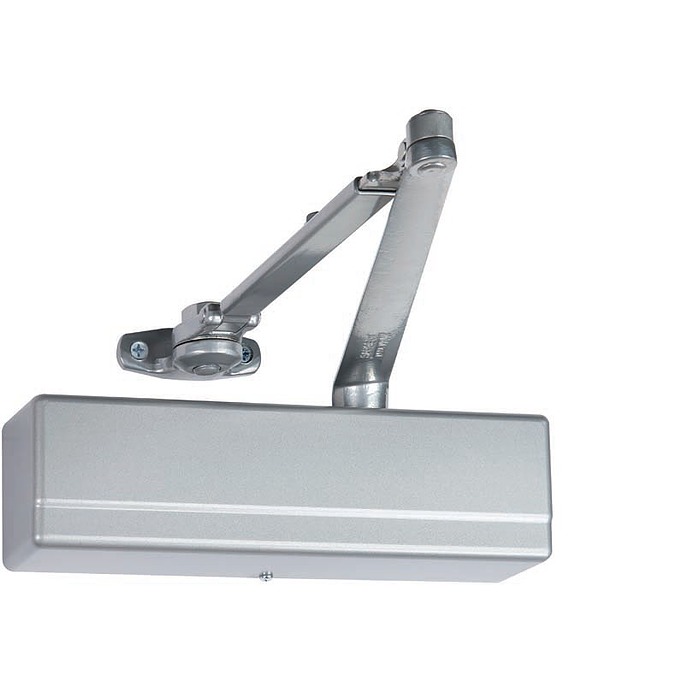

Sargent 1431

Powerglide Adjustable Door Closer (Replaces Sargent 1230 and 1231)

Quick Product Details

Door closer
Heavy Duty

Price: $382.00 /each

SKU: 1431

Choose Options Below

This Sargent 1431 is an aluminum door closer that can be adjusted to fit the application. This series is suitable for applications with narrow top rails. The 1431 includes separate intensity valves for latch-speed, closing-speed and backcheck. Package includes a high-impact, non-corrosive, plastic cover as the standard.

Stock Item
FREE Shipping
No Hassle Returns
×
Enter ZIP Code to see when you will get this item

Have a question about this product?

Price: $382.00

Start selecting options

Use the menu on the right to select available options.
After all options have been chosen, you can add to cart.

Choose Select Arm:

Need Help Deciding?

UO-Standard,Top Jamb or Parallel Applications

CPS-Heavy Duty Parallel Arm with Compression Stop +$260.00

PS-Heavy Duty Parallel Arm with Positive Stop +$162.00

P10-Heavy Duty Parallel Arm +$135.00

CPSH-Hold Open Parallel Arm with Compression Stop +$309.00

UH-Universal Hold Open Arm -Standard, Top Jamb or Parallel Applications +$157.00

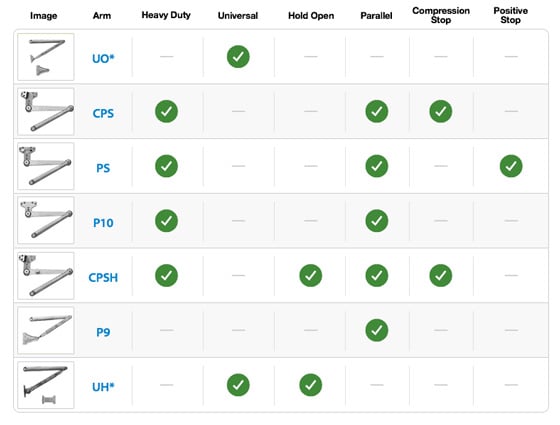

Help Me Decide

1. Universal - a standard arm which includes brackets for installation in standard, top jamb and parallel applications

2. Hold open - a door closer arm with the capability of holding the door in the open position until it is manually closed. Hold-open arm door closers are not permitted for use on fire door assemblies.

3. Parallel - a door closer arm that mounts on the push side of the door and the arm assembly extends almost parallel to the door. In the closed position, there is very little, or no hardware projecting beyond the frame face in most situations. This may be beneficial in vandalism prone areas. Due to the geometry of the arm it may be about 25% less power-efficient than a regular arm application.

*Package includes brackets to install closer in standard, top jamb or parallel applications.

Choose Finish:

Aluminum Enamel (EN)

Dark Bronze Enamel (EB)

1 Choose Select Arm:
2 Choose Finish:
Qty.
Have a question? Need help?
Call Us: 1-866-749-7661

Replacing Your Door Closer?

Product Finder

Overview

Suited for:

Exterior and interior commercial and industrial applications with narrow top rails

Quality and Safety:

Exceeds ANSI/BHMA Grade 1 156.4 standards
Meets ADA requirement for barrier free accessibility
UL listed for use on fire doors
Conforms with Positive pressure fire test standards - UL10C and UBC 7-2
10 year limited warranty

Special Orders Available:

More unlisted finishes available
Available with the delayed action feature

Available Options: Choose Options Above

Select Arm:

Select Arm

1. Universal - a standard arm which includes brackets for installation in standard, top jamb and parallel applications

2. Hold open - a door closer arm with the capability of holding the door in the open position until it is manually closed. Hold-open arm door closers are not permitted for use on fire door assemblies.

3. Parallel - a door closer arm that mounts on the push side of the door and the arm assembly extends almost parallel to the door. In the closed position, there is very little, or no hardware projecting beyond the frame face in most situations. This may be beneficial in vandalism prone areas. Due to the geometry of the arm it may be about 25% less power-efficient than a regular arm application.

*Package includes brackets to install closer in standard, top jamb or parallel applications.
- UO-Standard,Top Jamb or Parallel Applications
- CPS-Heavy Duty Parallel Arm with Compression Stop
- PS-Heavy Duty Parallel Arm with Positive Stop
- P10-Heavy Duty Parallel Arm
- CPSH-Hold Open Parallel Arm with Compression Stop
- UH-Universal Hold Open Arm -Standard, Top Jamb or Parallel Applications
Finish:
- Aluminum Enamel (EN)
- Dark Bronze Enamel (EB)

Product at A Glance

Separate latch-speed, closing-speed and backcheck intensity valves
Size is adjustable from 1 - 6, set in factory at 3
Retrofits the discontinued 1230 and 1231 Sargent closers
Heavy duty one piece aluminum silicon alloy body
Includes high impact, non-corrosive plastic cover (standard)
Heavy duty forged steel arms are interchangeable between Sargent 281, 351 and 1437
Supplied with All-weather fluid
Standard pressure relief valves for both opening and closing valves protect the door and frame from damage caused by abuse
Features standard pressure relief valves for backcheck

Style	Door Closer
Grade	Heavy Duty
Handing	Non-handed
Mounting Hole Spacing	Center to Center-Horizontally - 1", vertically - 11-1/8"
Opening Degrees	Up to 120 degrees with standard mounting
Dimensions (with cover)	Length - 12" by height - 3-3/8"
Projection of Closer	2-1/4" (with standard cover)

More Info

This closer provides flexibility to match nearly any commercial or industrial application. It is specifically suited for doorways with a narrow top rail. There are many arm options available to adapt the closer to perfectly accommodate the needs of your installation. This closer is also UL listed for use on fire rated doors.
