Sargent 23-8215-BHL

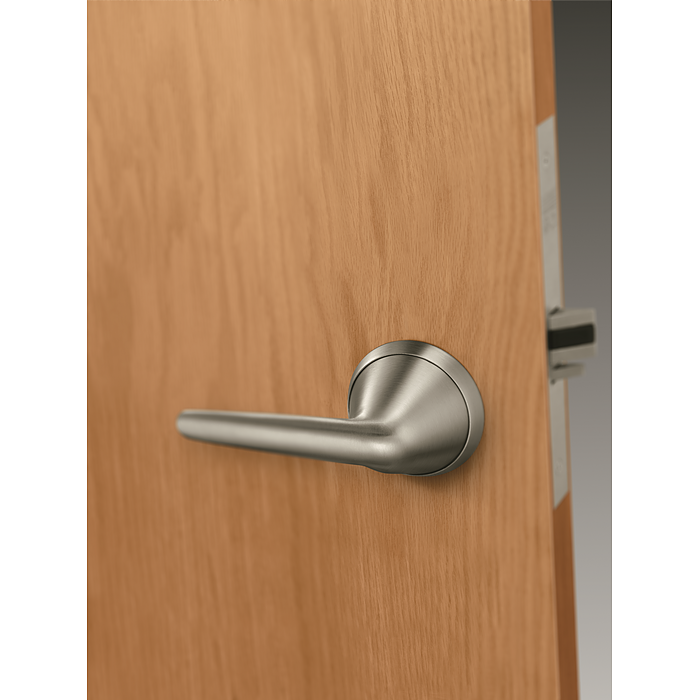

Special Order Ligature Resistant Passage Mortise Lock with BHL Trim

Get a Quote
Special Order non-stock item Requires 6 week lead time

SKU: 23-8215-BHL

Choose Options Below

This is a non stock item that ships direct from Sargent. The Sargent 8215-BHL passage mortise lock is part of the Behavioral Health Series of products. The BHL trim can be used on virtually any opening in healthcare applications. Sloping surfaces and overlapping rose and lever address safety concerns common in behavioral health.

  • Special Order
  • FREE Shipping

Have a question about this product?

Start selecting options

Use the menu on the right to select available options.
After all options have been chosen, you can add to cart.

Choose Finish:

US32D-Satin Stainless Steel US32D-Satin Stainless Steel

Choose Handing:

Need Help Deciding? QH chevron down
Left Hand Reverse (LHR)
Right Hand Reverse (RHR)
Left Hand (LH)
Right Hand (RH)

Help Me Decide



Face the outside of the door to determine the hand. Here are some rules to follow:

  • The outside of an exterior door is the street or entrance side.
  • The outside of a room door is the hall side.
  • The outside of a single communicating door is the side from which the hinges are not visible when the door is closed.
  • The outside of a closet door is the room or hall side.


When you are standing outside of the room facing the door and the hinges are on your left side:

  • If the door swings away from you it is Left Handed
  • If the door swings towards you it is Left Hand Reversed


When you are standing outside of the room facing the door and the hinges are on your right side:

  • If the door swings away from you, it is Right Handed
  • If the door swings towards you, it is Right Hand Reversed

Choose MicroShield(R):

SG MicroShield-antimicrobial coating + $58.00 SG MicroShield-antimicrobial coating +$58.00
No MicroShield coating No MicroShield coating

Help Me Decide

  • MicroShield® technology, a silver-based antimicrobial coating designed to inhibit the growth of bacteria.
  • Applications: Anywhere there is need for a clean environment , hospitals, laboratories, schools, medical centers, daycare, food processing.
  • MicroShield® coating permanently suppresses the growth of bacteria, algae, fungus, mold and mildew. It is effective against a broad spectrum of bacteria.
  • As an integral part of the finish coating, MicroShield® lasts for the life of the hardware.
  • Non-toxic and completely safe. The Agion antimicrobial compound is EPA and NSF approved and FDA listed for use in medical and food preparation equipment.

Overview

Special order non stock item with 4 week lead time.
  • Passage function, lever from either side retracts latchbolt at all times.
  • Bi-directional lever (outside only).
  • Sloped surfaces.
  • Concealed hardware.
  • Overlapping lever and rose construction.
  • Non-handed
  • Door thickness,1-3/4" to 1-7/8" standard.
  • 2-3/4" backset only.

Available Options: Choose Options Above

  • Finish:

  • Handing: info icon

    • Left Hand Reverse (LHR)
    • Right Hand Reverse (RHR)
    • Left Hand (LH)
    • Right Hand (RH)
  • MicroShield(R): info icon

    • SG MicroShield-antimicrobial coating
    • No MicroShield coating

More Info

  • UL Fire Rated.
  • ANSI/BHMA Grade 1.
  • ADA compliant.
  • 4-7/8" ANSI strike with 1-1/8" flat lip.
  • 6 Lobe head security screws (Torx® type) are standard with BHL trim.
Although these products are a better design for behavioral health applications than traditional trim, they do not eliminate the risk that an
object can be affixed to, or around them.
