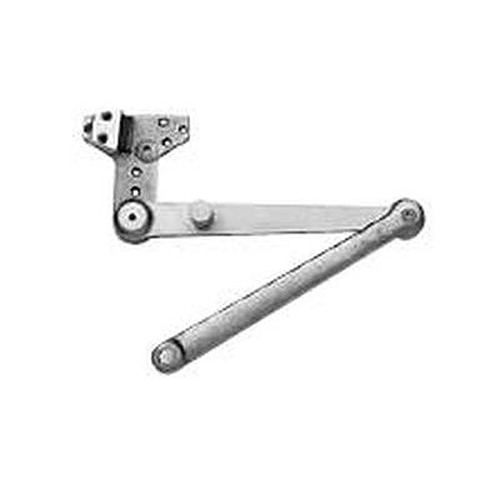

Sargent 25 CPSH

Heavy Duty Hold Open Parallel Arm with Compression Stop

Quick Product Details

  • Parallel arm
  • Hold-Open
  • Heavy Duty
  • Used with: 281, 351 and 1431 series door closers
Price: $353.00 /each

SKU: 25 CPSH

Choose Options Below

This Sargent 25 CPSH is heavy duty parallel arm that includes a hold open mechanism and a compression stop that can be set between 85° and 105° of opening swing. Compression stop is used in applications where there is a high traffic rate or potentially abusive installation conditions.

  • Stock Item
  • FREE Shipping
  • No Hassle Returns
  • ×
    Getting shipping methods...

Have a question about this product?

Price: $353.00

Start selecting options

Use the menu on the right to select available options.
After all options have been chosen, you can add to cart.

Choose Finish:

Dark Bronze Enamel (EB) Dark Bronze Enamel (EB)
Aluminum Enamel (EN) Aluminum Enamel (EN)

Help Me Decide


Overview

Product at A Glance

  • Forged steel arm
  • Used when door closer must be mounted on the push side of the door - parallel arm installation
  • Features Hold open - will hold the door in the open position until it is manually closed
  • Not permitted for use on fire door assemblies
  • Includes a built-in compression stop and holder mechanism between 85 and 105 degrees
  • Dead stop within 3 degrees
  • Includes main arm, arm and bracket assembly,bumper, bumper holder and screw pack
Style Parallel arm
Used With 281, 351 and 1431 series door closers
Handing Handed - field reversible
Door Opening Up to 105 degrees
Hold Open 85 to 105 degrees
Arm Length 11-1/4"

More Info


This 25 CPSH is not only a terrific parallel arm with a compression stop, but it also includes the hold-open feature. This function will hold the door open at the set position until it is closed manually. It is therefore not permitted for use on fire door assemblies which need to close on their own. The hold-open position can be set anywhere between 85° to 105°.
