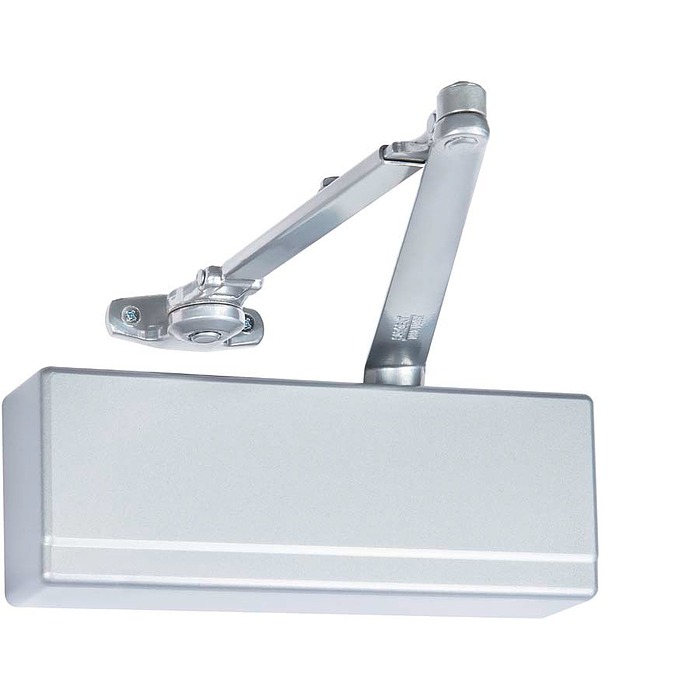

Sargent Powerglide Adjustable Cast Iron Door Closer Surface Mounted Closers

Sargent 281

Powerglide Adjustable Cast Iron Door Closer

Quick Product Details

Door closer
Heavy Duty
Retrofits the discontinued 1250 /1251Sargent closers

Price: $471.00 /each

SKU: 281

Choose Options Below

This Sargent 281 series powerglide adjustable cast iron door closer is for use in heavy duty commercial or industrial applications on exterior and interior doors. The spring size is adjustable to fit any application. Select an arm below that will suit the needs of your application

Stock Item
FREE Shipping
No Hassle Returns
×
Enter ZIP Code to see when you will get this item

Have a question about this product?

Price: $471.00

Start selecting options

Use the menu on the right to select available options.
After all options have been chosen, you can add to cart.

Choose Select Arm:

Need Help Deciding?

UO - Standard, Top Jamb or Parallel Applications

CPS +$260.00

PS +$162.00

P10 +$135.00

CPSH +$309.00

PSH +$212.00

P9 - Standard Parallel Arm

UH +$157.00

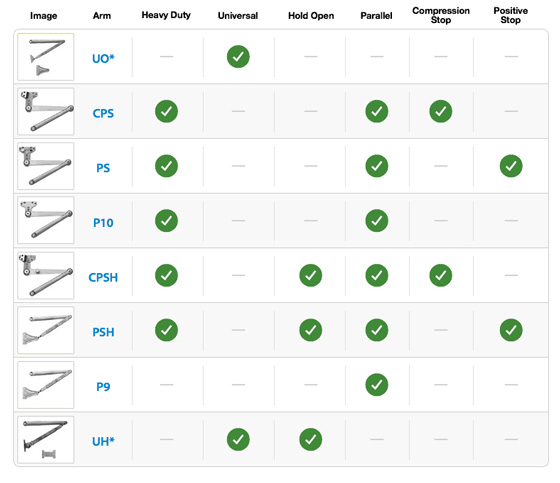

Help Me Decide

1. Universal - a standard arm which includes brackets for installation in standard, top jamb and parallel applications

2. Hold open - a door closer arm with the capability of holding the door in the open position until it is manually closed. Hold-open arm door closers are not permitted for use on fire door assemblies.

3. Parallel - a door closer arm that mounts on the push side of the door and the arm assembly extends almost parallel to the door. In the closed position, there is very little, or no hardware projecting beyond the frame face in most situations. This may be beneficial in vandalism prone areas. Due to the geometry of the arm it may be about 25% less power-efficient than a regular arm application.

*Package includes brackets to install closer in standard, top jamb or parallel applications.

Choose Finish:

Aluminum Enamel (EN)

Dark Bronze Enamel (EB)

1 Choose Select Arm:
2 Choose Finish:
Qty.
Have a question? Need help?
Call Us: 1-866-749-7661

Replacing Your Door Closer?

Product Finder

Overview

Suited for :

Exterior and interior commercial and industrial applications

Quality and Safety:

Exceeds ANSI/BHMA Grade 1 156.4 standards
Meets ADA requirement for barrier free accessibility
UL listed for use on fire doors
Conforms with Positive pressure fire test standards - UL10C and UBC 7-2
10 year limited warranty

Special Orders Available:

More unlisted finishes available
Available with the delayed action feature

Available Options: Choose Options Above

Select Arm:

Select Arm

1. Universal - a standard arm which includes brackets for installation in standard, top jamb and parallel applications

2. Hold open - a door closer arm with the capability of holding the door in the open position until it is manually closed. Hold-open arm door closers are not permitted for use on fire door assemblies.

3. Parallel - a door closer arm that mounts on the push side of the door and the arm assembly extends almost parallel to the door. In the closed position, there is very little, or no hardware projecting beyond the frame face in most situations. This may be beneficial in vandalism prone areas. Due to the geometry of the arm it may be about 25% less power-efficient than a regular arm application.

*Package includes brackets to install closer in standard, top jamb or parallel applications.
- UO - Standard, Top Jamb or Parallel Applications
- CPS
- PS
- P10
- CPSH
- PSH
- P9 - Standard Parallel Arm
- UH
Finish:
- Aluminum Enamel (EN)
- Dark Bronze Enamel (EB)

Product at A Glance

Separate latch-speed, closing-speed and backcheck intensity valves
Size is adjustable from 1 - 6, set in factory at 3
Mounting bracket included for easy installation of cast iron
Heavy duty cast iron body
Includes a high impact, non-corrosive plastic cover (standard)
Heavy duty forged steel arms are interchangeable between Sargent 281, 351 and 1437
All-weather fluid feature supplied
Standard pressure relief valves for both opening and closing valves protect the door and frame from damage caused by abuse

Style	Door closer
Grade	Heavy duty
Handing	Non-handed
Mounting Hole Spacing	Center to Center- Horizontally - 10-3/8" - Vertically - 1"
Opening Degrees	Up to 120 degrees with standard mounting
Dimensions (with cover)	Length - 11-3/16" by height - 4-3/8"
Projection of Closer	2-3/16" (with standard cover)

More Info

The Sargent 281 door closer is engineered to provide uncompromised strength and durability for high use commercial applications. It features a heat treated full rack and pinion that will ensure wear resistance and a one piece cast iron body with a very high endurance level. The 1/2" arm engagement over the 7/16" square spindle is specially designed to provide a wear resistant tight joint.
