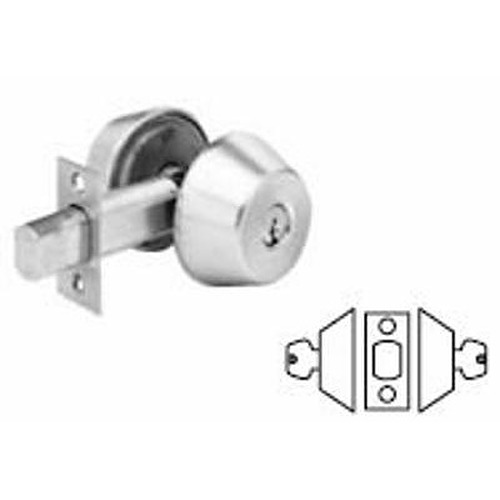

Sargent 484

Double Cylinder Deadbolt

SKU: 484

Price: $133.00

Choose Options Below

The Sargent 484 double cylinder heavy duty deadbolt is ideally suited for heavy duty industrial and commercial applications. The double cylinder fuctions requires a key to unlock and lock the door from both sides of the door. See more product information below

  • In Stock!
  • Order in the next 16 hours 27 minutes to Ship TOMORROW
  • FREE Same-Day ShippingWhen ordered before 3PM ET
  • No Hassle Returns
  • ×
    Getting shipping methods...

Have a question about this product?

Price: $133.00

Choose Options

Start selecting options

Use the menu on the right to select available options.
After all options have been chosen, you can add to cart.

Choose Backset:

Help Me Decide

The backset is the distance from the edge of the door to the center of the 2-1/8-inch bore hole in the face of the door.

  • Most commercial doors have a 2-3/4" backset.
  • Most residential doors have a 2-3/8' backset

Choose Finish:

Choose Cylinder:

Help Me Decide

LA Keyway- KD keyed different.




  • Key from either side operates deadbolt
  • For doors 1-3/8" to 1-3/4" thick standard
  • Cylinder - Sargent 6 pin  LA keyway keyed different.
  • Backset - 2-3/4" standard, 2-3/8" available

Available Options: Choose Options Above

  • Backset: info icon

    • 2-3/4"
    • 2-3/8"
  • Finish:

  • Cylinder: info icon

    • 6 Pin LA Keyway, KD - Keyed Different

Tech Specs

  • Fits 161 standard cut outs ( 2-1/8" cross-bore with a 2-3/4" backset, and
    a 1" edge-bore with a mortise 1-1/8" wide and 2-1/4" high
  • Solid steel bolt with hardened steel pin insert  7/8" x 5/8" x 1" throw
  • Non handed
  • ANSI EO141
  • 404 Standard Strike-2-3/4" X 1-1/8"
  • UL/cUL- Listed UL listed to U.S. and Canadian safety standards
  • Positive Pressure- Conforms to standards UL 10C and UBC 7-2 (1997)



Instructions & Templates

Click on the links below to download helpful instructions & templates for this product

Double Cylinder Deadbolt

Scroll for More Product Information
