Sargent 485

Single Cylinder Deadbolt

SKU: 485

Price: $100.00

Choose Options Below

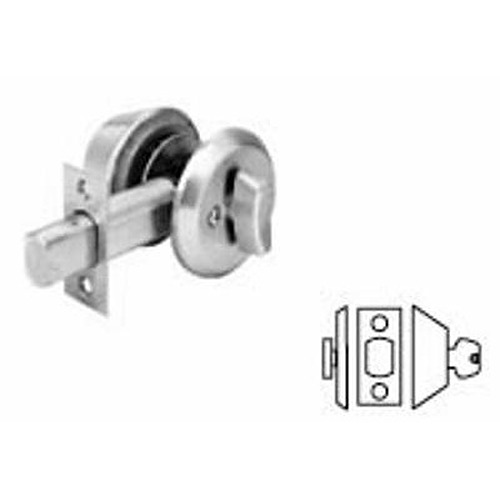

The Sargent 485 single cylinder heavy duty deadbolt is ideally suited for heavy duty industrial and commercial applications See more product information below

  • In Stock!
  • Order in the next 36 hours 4 minutes to Ship TOMORROW
  • FREE Same-Day ShippingWhen ordered before 3PM ET
  • No Hassle Returns
  • ×
    Getting shipping methods...

Have a question about this product?

Price: $100.00

Choose Options

Start selecting options

Use the menu on the right to select available options.
After all options have been chosen, you can add to cart.

Choose Backset:

Help Me Decide

The backset is the distance from the edge of the door to the center of the 2-1/8-inch bore hole in the face of the door.

  • Most commercial doors have a 2-3/4" backset.
  • Most residential doors have a 2-3/8' backset

Choose Cylinder:

Help Me Decide

LA Keyway- KD keyed different.



Choose Finish:


  • Key outside operates deadbolt , turn lever inside operates deadbolt.
  • For doors 1-3/8" to 1-3/4" thick standard.
  • Cylinder - Sargent 6 pin LA keyway keyed different.
  • Backset - 2-3/4" standard, 2-3/8" available.

Available Options: Choose Options Above

Tech Specs

  • Fits 161 standard cut outs ( 2-1/8" cross-bore with a 2-3/4" backset, and
    a 1" edge-bore with a mortise 1-1/8" wide and 2-1/4" high.
  • ANSI  EO151.
  • 404 Standard Strike-2-3/4"X 1-1/8".
  • Solid steel bolt with hardened steel pin insert  7/8" x 5/8" x 1" throw.
  • Non handed.
  • UL/cUL- Listed UL listed to U.S. and Canadian safety standards
  • Positive Pressure- Conforms to standards UL 10C and UBC 7-2 (1997).



Instructions & Templates

Click on the links below to download helpful instructions & templates for this product

Single Cylinder Deadbolt

Scroll for More Product Information
