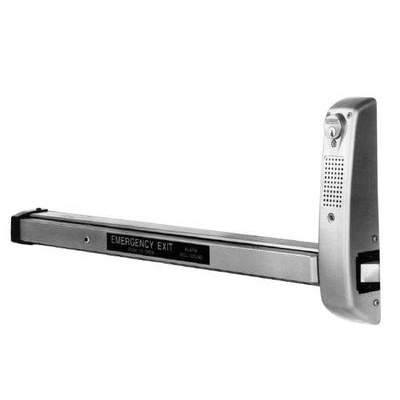

Sargent 5813 Alarmed Exit Device

Sargent 5813 Alarmed Exit Device

SKU: 5813 Sargent 5813 alarmed rim exit device. Entrance function, key locks/ unlocks trim, Trim ordered separately. Designed for primary and secondary exits that require an alarmed panic device. Alarm will sound when someone attempts to exit,alerting management to the unauthorized exit.

Overview
Tech Specs
Related Items

Instructions & Templates

Alarmed Exit Device

Serial no. / SKU: 5813

Product Overview

For doors - 1-3/4" thick standard with a 4-1/2" minimum stile width
Entrance function, Key Locks/ Unlocks Trim, Trim ordered separately
Battery powered by a 9 volt alkaline
Stainless steel 3/4" bolt is monitored by an electronic sensing system.
Dual frequency pulsating-type horns
Cylinder - Key inside arms and disarms unit. #41 Mortise cylinder included.

Alarmed Exit Device

Serial no. / SKU: 5813

Technical Specifications

Touch Bar Rail size-F- 33" to 36", J - 37" to 42", G - 43" to 48"
Reversible. Shipped RHR.
Furnished with wood and machine screws.
Low Battery Alert
Unit is in the 'armed' state after 12 seconds when rotating key to activate alarm
UL listed for Panic (FVSR)
Quick disconnect is provided for battery replacement
Horns are activated by any unauthorized latchbolt movement or the attempted removal of the cover.
A 15 second delay feature allows the alarm to be activated while the door is open
Automatic rearm after two minutes
A red LED alarm light flashes to indicate a violation has occurred.
The latchbolt can be retracted from the outside only. Rim Cylinder included.
Available as a specail order in other finishes as well as Fire Rated. Contact us directly to arrange your special order
