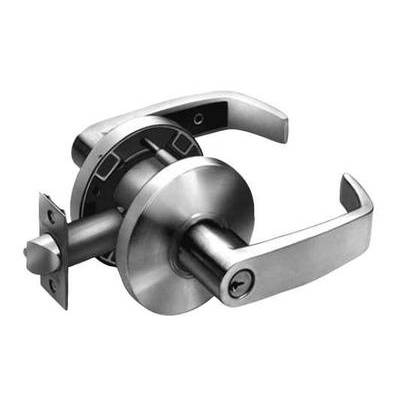

6500 Standard Duty Classroom lever

Product Overview

• Classroom function
• Standard duty key-in-lever lock
• Cylinder - Sargent 6 pin 1 bitted (ready to be keyed) except for LA keyway, keyed different .
• For Doors 1-3/8" to 1-3/4" only
• Backset - 2-3/4" standard. 2-3/8" optional
• Strike- 4-7/8" ANSI A-115.2 Curved Lip Strike with 1-1/4" curved lip
• Latch - Brass 1/2" throw
• K style rose with L style lever

6500 Standard Duty Classroom lever

Technical Specifications

37 Classroom
• Deadlocking latch
• Latch by either lever unless outside lever is locked by key
• Key in outside lever locks or unlocks outside lever
• Inside lever always operative
• ANSI F84
• Minimum Stile 4-1/2"
• ANSI/BHMA - Meets ANSI A156.2 Series 4000 Grade 2
• UL listed to U.S.A. and Canadian safety standards Listed for 3 Hour Doors
• Positive Pressure - Meets UL 10C and UBC 7-2 (1997)
• ADA - All levers conform to ADA requirement for barrier-free accessibility

Available in other finishes and lever styles and 2-3/8" backset as a special order. Contact us directly to arrange your special order.
