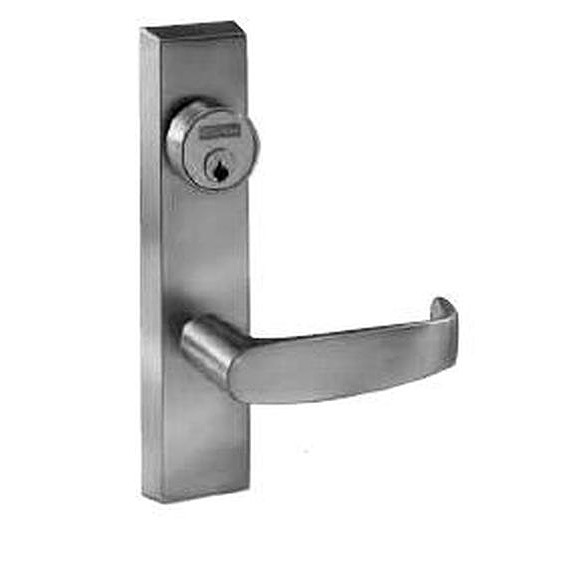

Sargent 706ET

ET Night Latch Lever Trim for 8700 Exit device

Quick Product Details

  • Lever Trim
  • Used with: 8700 series exit devices
Price: $543.00 /each

SKU: 706ET

Choose Options Below

This Sargent 706ET is a keyed lever trim for the 8700 series exit devices. A key will unlock the trim, which will then be able to retract the latchbolt, until it is relocked by removal of the key. This product is handed and field reversible.

  • Stock Item
  • Order in the next 19 hours 35 minutes to ship TOMORROW
  • FREE Same-Day ShippingWhen ordered before 2PM ET
  • No Hassle Returns
  • ×
    Getting shipping methods...

Have a question about this product?

Price: $543.00

Start selecting options

Use the menu on the right to select available options.
After all options have been chosen, you can add to cart.

Choose Finish:

Polished Brass (US3) Polished Brass (US3)
Oil Rubbed Bronze (US10B) Oil Rubbed Bronze (US10B)
Satin Chrome (US26D) Satin Chrome (US26D)

Choose Handing:

Left Hand Reverse (LHR)
Right Hand Reverse (RHR)

Help Me Decide

Face the outside of the door to determine the hand. Here are some rules to follow:

  • The outside of an exterior door is the street or entrance side.
  • The outside of a room door is the hall side.
  • The outside of a single communicating door is the side from which the hinges are not visible when the door is closed.
  • The outside of a closet door is the room or hall side.



Doors equipped with exit devices swing out only, and therefore exit device handing is known as reverse bevel.

The door is Left Hand Reversed if:

   • While you are standing outside of the room facing the door, the hinges are on your left side.

The door is Right Hand Reversed if:

   • While you are standing outside of the room facing the door, the hinges are on your right side.

Choose Keyway:

Need Help Deciding? QH chevron down
LA-KD (Keyed Different) LA-KD (Keyed Different)
LB LB
LC LC
LE LE
LF LF
LG LG
LJ LJ
LK LK
LL LL
RA RA
RB RB
RC RC
RE RE
RF RF
RG RG
RJ RJ
RK RK
RL RL
Prepped for Removable Core (RC) Prepped for Removable Core (RC)
Less Cylinder (LC)

Help Me Decide

LA Keyway-KD (Keyed Different), all others 1 Bitted

Choose Lever:

B B
L L
J J
P P

Overview

Available Options: Choose Options Above

  • Finish:

  • Handing: info icon

    • Left Hand Reverse (LHR)
    • Right Hand Reverse (RHR)
  • Keyway: info icon

    • LA-KD (Keyed Different)
    • LB
    • LC
    • LE
    • LF
    • LG
    • LJ
    • LK
    • LL
    • RA
    • RB
    • RC
    • RE
    • RF
    • RG
    • RJ
    • RK
    • RL
    • Prepped for Removable Core (RC)
    • Less Cylinder (LC)
  • Lever:

    • B
    • L
    • J
    • P

Product at A Glance

Style Lever trim
Used With 8700 series exit devices
Function - Key unlocks the trim
- Trim retracts the lever when it is unlocked and it will relock when the key is removed
- ANSI 09
Handing Handed - field reversible
Door Thickness 1-3/4"
