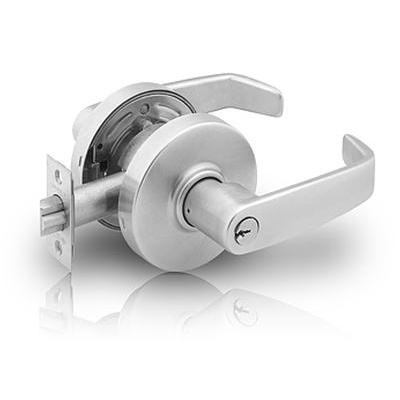

Sargent 7G04 7 Line Storeroom Lever

Sargent 7G04 7 Line Storeroom Lever

SKU: 7G04 The Sargent 7 line 7G04 storeroom function key-in-lever lock is designed for standard duty commercial exterior and interior doors in offices, commercial interiors, medical clinics, government facilities and public buildings.

Overview
Tech Specs

Instructions & Templates

7 Line Storeroom Lever

Serial no. / SKU: 7G04

Product Overview

Storeroom or Closet function
Standard duty commercial key-in-lever lock
For Doors 1-3/4" thick standard,
Cylinder - Sargent 6 pin 1 bitted, (ready to be keyed) prepped for Best IC core or
prepped for Sargent Removable Core
Backset -2-3/4" standard.
4-7/8" ANSI A-115.2 Curved Lip Strike with 1-1/4" curved lip standard
Latch- Brass 1/2" throw, 2-1/4" x 1-1/8"
Door prep-161 (2-1/8" cross-bore with a 2-3/4" backset, and a 1" edge-bore with a mortise 1-1/8" wide and 2-1/4" high)

7 Line Storeroom Lever

Serial no. / SKU: 7G04

Technical Specifications

Deadlocking latch
Latch by lever inside or key outside
Outside lever rigid at all times
ANSI F86
L style rose with B, L or P style lever
Minimum Stile 4-1/2"
Internal through-bolts supply strength and stability without requiring additional door preparation
Meets ANSI A156.2 Series 4000 - Grade 2
UL-UL listed to U.S.A. and Canadian safety standards. Listed for 3 Hour Doors
Available in other finishes and 2-3/8" backset and for 1-3/8" thick doors as a special order. Contact us directly to arrange your special order.
