Sargent 8204-ALP-32D-LAKD

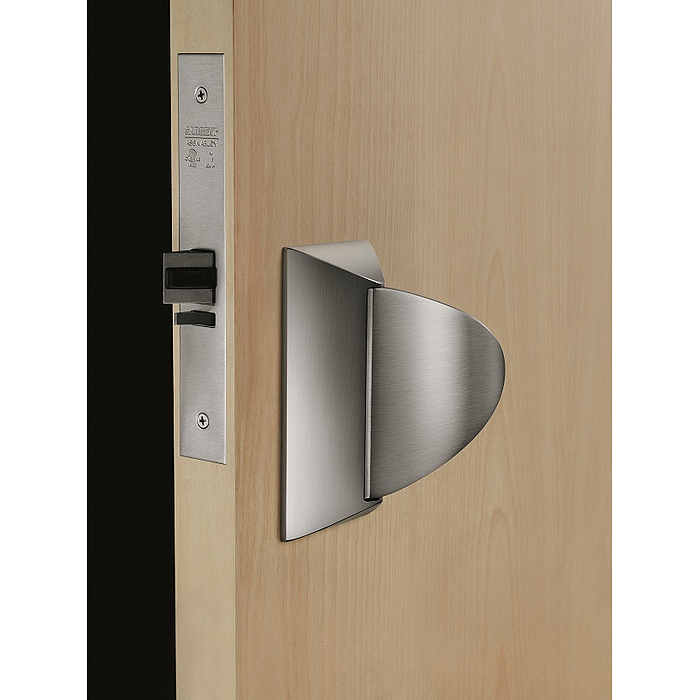

Special Order Ligature Resistant Storeroom Function Mortise Lock with Push-Pull Trim

Get a Quote
Special Order non-stock item Requires 6 week lead time

SKU: 8204-ALP-32D-LAKD

Choose Options Below

Touch less,the paddle shape and location create a comfortable target for door activation without using hands. This is a non stock item that ships direct from Sargent.The 8204ALP Ligature Resistant storeroom function mortise lock with push/pull trim provides an aesthetically pleasing alternative to standard push/pull products. Ease of operation, along with the strength of the 8200 mortise lock allows its use in many types of environments. Perfect for health care facilities, including behavioral health units, patient room doors and operating rooms.

Because this is not a stock item we must order it specifically for you and we will be unable to accept a return unless the item is defective as determined by the factory it was bought from.

  • Special Order
  • FREE Shipping

Have a question about this product?

Start selecting options

Use the menu on the right to select available options.
After all options have been chosen, you can add to cart.

Choose MicroShield(R):

SG MicroShield-antimicrobial coating + $60.00 SG MicroShield-antimicrobial coating +$60.00
No MicroShield coating No MicroShield coating

Help Me Decide

  • MicroShield® technology, a silver-based antimicrobial coating designed to inhibit the growth of bacteria.
  • Applications: Anywhere there is need for a clean environment , hospitals, laboratories, schools, medical centers, daycare, food processing.
  • MicroShield® coating permanently suppresses the growth of bacteria, algae, fungus, mold and mildew. It is effective against a broad spectrum of bacteria.
  • As an integral part of the finish coating, MicroShield® lasts for the life of the hardware.
  • Non-toxic and completely safe. The Agion antimicrobial compound is EPA and NSF approved and FDA listed for use in medical and food preparation equipment.

Choose Handing:

Need Help Deciding? QH chevron down
Left Hand Reverse (LHR)
Right Hand Reverse (RHR)
Left Hand (LH)
Right Hand (RH)

Help Me Decide



Face the outside of the door to determine the hand. Here are some rules to follow:

  • The outside of an exterior door is the street or entrance side.
  • The outside of a room door is the hall side.
  • The outside of a single communicating door is the side from which the hinges are not visible when the door is closed.
  • The outside of a closet door is the room or hall side.


When you are standing outside of the room facing the door and the hinges are on your left side:

  • If the door swings away from you it is Left Handed
  • If the door swings towards you it is Left Hand Reversed


When you are standing outside of the room facing the door and the hinges are on your right side:

  • If the door swings away from you, it is Right Handed
  • If the door swings towards you, it is Right Hand Reversed

Choose Finish:

Satin Stainless Steel (US32D) Satin Stainless Steel (US32D)

Overview

Special order non stock item with 4 week lead time.
  • Storeroom function,Key outside retracts latchbolt.
  • Paddle outside locked at all times.
  • Paddle inside always retracts latchbolt.
  • Latch only, no deadbolt.
  • Paddle can be mounted in horizontal (up or down) and vertical (sideways) orientations in the field.
  • Trim is non-handed; lockbody is easily field reversible.
  • Door thickness 1-3/4" to 1-7/8".
  • Backset 2-3/4".
  • Outside front plate-8"x 1-1/4".
  • Complete with cylinder.

Available Options: Choose Options Above

  • MicroShield(R): info icon

    • SG MicroShield-antimicrobial coating
    • No MicroShield coating
  • Handing: info icon

    • Left Hand Reverse (LHR)
    • Right Hand Reverse (RHR)
    • Left Hand (LH)
    • Right Hand (RH)
  • Finish:

Product at A Glance

  • Optional MicroShield® technology, a silver-based antimicrobial coating designed to inhibit the growth of bacteria.

More Info

  • Covers are cast stainless steel or brass.
  • Latchbolt, stainless steel 3/4" projection one-piece, anti-friction reversible latch.
  • 4-7/8" ANSI Strike with 1-1/8" flat lip.
  • Certified to ANSI/BHMA A156.13 Series 1000 Operational Grade 1 and Security Grade 1 with all standard trims.
  • ADA,Meets A117.1 Accessibility Code.
  • Meets BOMA International 4.13.8
  • Complies with American Disability Act.
  • UL and cUL Listed for use with 3 hour fire “A” label 4 x 10 single and 8 x 10 double and lesser class doors.
  • Meets ANSI/UL 10C, Positive Pressure Fire Test of Door Assemblies.
  • Available in many other finishes.Contact us for pricing.
