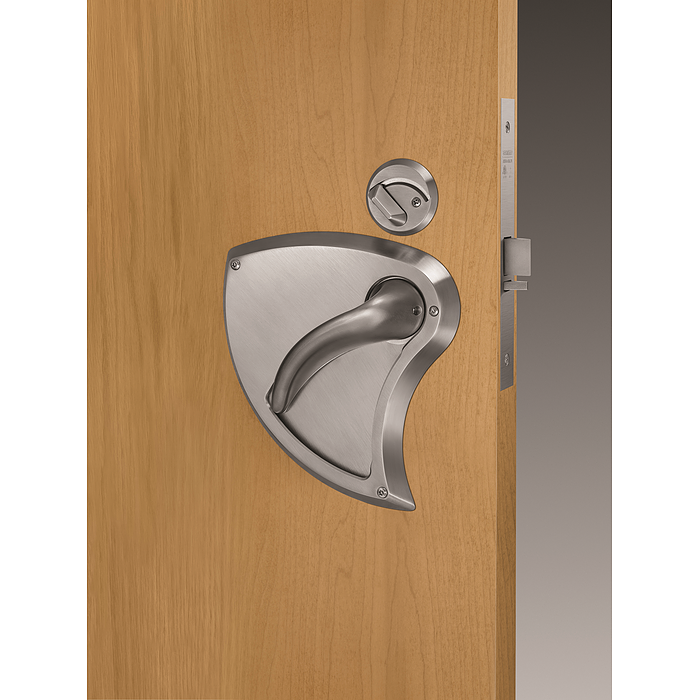

Sargent 8204-BHW-32D-LAKD

Special Order Ligature Resistant Storeroom Function Mortise Lock with BHW Trim

SKU: 8204-BHW-32D-LAKD

Price: $978.00

Special Order non-stock item Requires 4 week lead time

Choose Options Below

This is a non stock item that ships direct from Sargent.The 8204BHW Ligature Resistant storeroom function mortise lock with BHW trim is Part of the Behavioral Health Series of products, the 8200 mortise lock with BHW trim provides an innovative solution for behavioral health environments.Tapered surfaces on all components. The unique integrated lever and escutcheon combines aesthetics with safety. See more product information below

Because this is not a stock item we must order it specifically for you and we will be unable to accept a return unless the item is defective as determined by the factory it was bought from.

  • Special Order
  • FREE Shipping

Have a question about this product?

Price: $978.00

Choose Options

Start selecting options

Use the menu on the right to select available options.
After all options have been chosen, you can add to cart.

Choose Handing:

Need Help Deciding?

Help Me Decide



Face the outside of the door to determine the hand. Here are some rules to follow:

  • The outside of an exterior door is the street or entrance side.
  • The outside of a room door is the hall side.
  • The outside of a single communicating door is the side from which the hinges are not visible when the door is closed.
  • The outside of a closet door is the room or hall side.


When you are standing outside of the room facing the door and the hinges are on your left side:

  • If the door swings away from you it is Left Handed
  • If the door swings towards you it is Left Hand Reversed


When you are standing outside of the room facing the door and the hinges are on your right side:

  • If the door swings away from you, it is Right Handed
  • If the door swings towards you, it is Right Hand Reversed

Choose Finish:

Overview

Special order non stock item with 4 week lead time.
  • Storeroom function,Key outside retracts latchbolt.
  • lever outside locked at all times.
  • lever inside always retracts latchbolt.
  • Latch only, no deadbolt.
  • Handed.
  • Door thickness 1-3/4" to 1-7/8".
  • Backset 2-3/4".
  • Outside front plate-8"x 1-1/4".
  • Complete with cylinder.

Available Options: Choose Options Above

  • Covers are cast stainless steel or brass.
  • Latchbolt, stainless steel 3/4" projection one-piece, anti-friction reversible latch.
  • 4-7/8" ANSI Strike with 1-1/8" flat lip.
  • Certified to ANSI/BHMA A156.13 Series 1000 Operational Grade 1 and Security Grade 1 with all standard trims.
  • ADA,Meets A117.1 Accessibility Code.
  • Meets BOMA International 4.13.8
  • Complies with American Disability Act.
  • UL and cUL Listed for use with 3 hour fire “A” label 4 x 10 single and 8 x 10 double and lesser class doors.
  • Meets ANSI/UL 10C, Positive Pressure Fire Test of Door Assemblies.
  • Although these products are better designed for behavioral health applications than traditional trim, they do not eliminate the risk that an object can be
    affixed to, or around them.
Available in many other finishes.Contact us for pricing.

Reviews

Q&A

Instructions & Templates

Click on the links below to download helpful instructions & templates for this product

Special Order Ligature Resistant Storeroom Function Mortise Lock with BHW Trim
