Sargent 8205-BHW-32D-LAKD

Special Order Ligature Resistant Office or Entry Function Mortise Lock with BHW Trim

Get a Quote
Special Order non-stock item Requires 6 week lead time

SKU: 8205-BHW-32D-LAKD

Choose Options Below

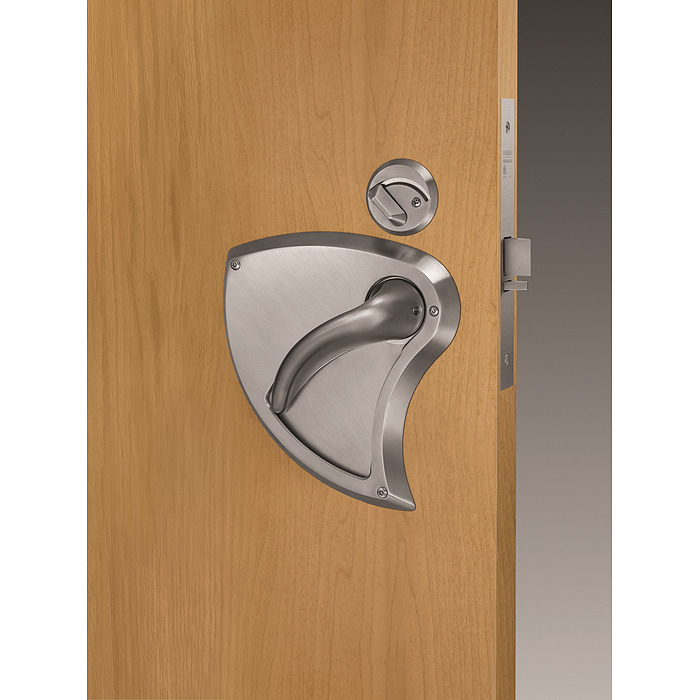

This is a non stock item that ships direct from Sargent.The 8205BHW Ligature Resistant Office or Entry function mortise lock with BHW trim is Part of the Behavioral Health Series of products, the 8200 mortise lock with BHW trim provides an innovative solution for behavioral health environments. Tapered surfaces on all components. The unique integrated lever and escutcheon combines aesthetics with safety.

Because this is not a stock item we must order it specifically for you and we will be unable to accept a return unless the item is defective as determined by the factory it was bought from.

  • Special Order
  • FREE Shipping

Have a question about this product?

Start selecting options

Use the menu on the right to select available options.
After all options have been chosen, you can add to cart.

Choose Handing:

Need Help Deciding? QH chevron down
Left Hand Reverse (LHR)
Right Hand Reverse (RHR)
Left Hand (LH)
Right Hand (RH)

Help Me Decide



Face the outside of the door to determine the hand. Here are some rules to follow:

  • The outside of an exterior door is the street or entrance side.
  • The outside of a room door is the hall side.
  • The outside of a single communicating door is the side from which the hinges are not visible when the door is closed.
  • The outside of a closet door is the room or hall side.


When you are standing outside of the room facing the door and the hinges are on your left side:

  • If the door swings away from you it is Left Handed
  • If the door swings towards you it is Left Hand Reversed


When you are standing outside of the room facing the door and the hinges are on your right side:

  • If the door swings away from you, it is Right Handed
  • If the door swings towards you, it is Right Hand Reversed

Choose Finish:

Satin Stainless Steel (US32D) Satin Stainless Steel (US32D)

Choose MicroShield(R):

SG MicroShield-antimicrobial coating + $60.00 SG MicroShield-antimicrobial coating +$60.00
No MicroShield coating No MicroShield coating

Help Me Decide

  • MicroShield® technology, a silver-based antimicrobial coating designed to inhibit the growth of bacteria.
  • Applications: Anywhere there is need for a clean environment , hospitals, laboratories, schools, medical centers, daycare, food processing.
  • MicroShield® coating permanently suppresses the growth of bacteria, algae, fungus, mold and mildew. It is effective against a broad spectrum of bacteria.
  • As an integral part of the finish coating, MicroShield® lasts for the life of the hardware.
  • Non-toxic and completely safe. The Agion antimicrobial compound is EPA and NSF approved and FDA listed for use in medical and food preparation equipment.

Overview

Special order non stock item with 4 week lead time.
  • Entry/Office function,key outside retracts latchbolt, also locks and unlocks outside lever.
  • Lever inside always retracts latchbolt, lever outside remains locked
  • Thumbturn inside locks and unlocks outside lever.
  • Handed.
  • Auxiliary deadlatch.
  • Door thickness 1-3/4" to 1-7/8".
  • Backset 2-3/4".
  • Outside front plate-8"x 1-1/4".
  • Complete with cylinder.

Available Options: Choose Options Above

  • Handing: info icon

    • Left Hand Reverse (LHR)
    • Right Hand Reverse (RHR)
    • Left Hand (LH)
    • Right Hand (RH)
  • Finish:

  • MicroShield(R): info icon

    • SG MicroShield-antimicrobial coating
    • No MicroShield coating

Product at A Glance

  • Optional MicroShield® technology, a silver-based antimicrobial coating designed to inhibit the growth of bacteria

More Info

  • Covers are cast stainless steel or brass.
  • Latchbolt, stainless steel 3/4" projection one-piece, anti-friction reversible latch.
  • 4-7/8" ANSI Strike with 1-1/8" flat lip.
  • Certified to ANSI/BHMA A156.13 Series 1000 Operational Grade 1 and Security Grade 1 with all standard trims.
  • ADA,Meets A117.1 Accessibility Code.
  • Meets BOMA International 4.13.8
  • Complies with American Disability Act.
  • UL and cUL Listed for use with 3 hour fire “A” label 4 x 10 single and 8 x 10 double and lesser class doors.
  • Meets ANSI/UL 10C, Positive Pressure Fire Test of Door Assemblies.
  • Although these products are better designed for behavioral health applications than traditional trim, they do not eliminate the risk that an object can be
    affixed to, or around them.
Available in many other finishes.Contact us for pricing.
