Sargent 8205-LNND-10BE

Special Order Office or Entry Function Complete Mortise Lock with ND Lever and LN Rose

SKU: 8205-LNND-10BE

Price: $510.00

Special Order non-stock item Requires 4 week lead time

Complete mortise locks contain everything needed for new or replacement installation. The Sargent 8205 complete Office or Entry function mortise lock. Mortise locks provide maximum security, performance and durability. Ideally suited for Hospitals, Schools, Universities, Office Buildings and Government Facilities. See more product information below

Because this is not a stock item we must order it specifically for you and we will be unable to accept a return unless the item is defective as determined by the factory it was bought from.

Have a question? Need help?
Call Us: 1-866-749-7661

  • Special Order
  • FREE Shipping

Have a question about this product?

Overview

Special order non stock item with 4 week lead time

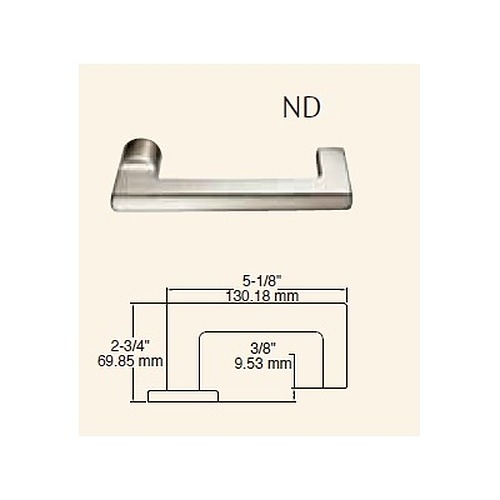

  • With ND style lever and LN rose.
  • Dark satin bronze - equivalent finish 10BE.
  • LN rose has a 2-1/8" diameter.
  • Includes 1-1/8" mortise cylinder.
  • Complies with ADA- American Disability Act.
  • Backset- 2-3⁄4".
  • Handing - field reversible-shipped RH standard.
  • For doors 1-3⁄4" thick.
  • Body is 4-3/32" deep x 5-31/32" high.
  • ANSI F07, 04 Storeroom - 8204
  • Key outside retracts latchbolt, also locks & unlocks outside lever.
  • Lever inside always retracts latchbolt, trim outside remains locked.
  • Thumbturn inside locks & unlocks outside lever.
  • Auxiliary deadlatch.
  • Handing - field reversible.
  • Certified to ANSI/BHMA A156.13 Series 1000 Operational Grade 1 and Security Grade 1 with all standard trims.
  • Exceeds cycle testing requirements by 14 times the ANSI/BHMA A156.13 Grade 1 standard
  • Meets positive pressure requirements UL 10C and UBC 7-2.
  • UL and CUL Listed safety standards for A label (3 hour fire door).
  • 4-1/2" minimum stile.
  • Strike-ANSI Standard A115.1; 4-7⁄8", 1-1/4" curved lip, non-handed
  • Outside front plate-8" x 1-1⁄4".
  • Latchbolt - Stainless steel 3⁄4" projection one-piece, anti-friction reversible.
