Sargent 8205LW1J-26D

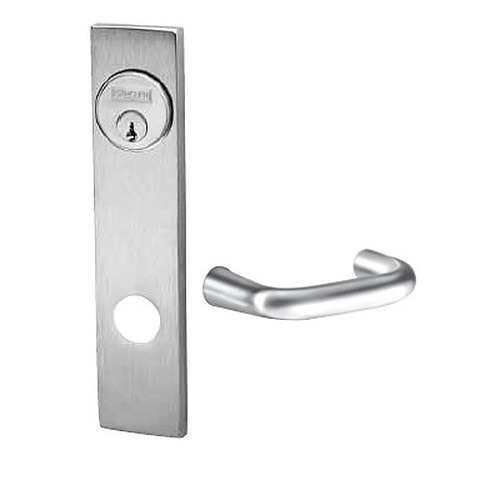

Special Order Office or Entry Function Complete Mortise Lock with Lever and Decorative Plate

Get a Quote
Special Order non-stock item Requires 6 week lead time

SKU: 8205LW1J-26D

Choose Options Below

Complete mortise locks contain everything needed for new or replacement installation. The Sargent 8205 complete Office or Entry function mortise lock, Key outside retracts latchbolt when outside lever is locked. Thumbturn inside locks & unlocks outside lever. Lever inside always retracts latchbolt, lever outside remains locked. Mortise locks provide maximum security, performance and durability. Ideally suited for Hospitals, Schools, Universities, Office Buildings and Government Facilities.

Because this is not a stock item we must order it specifically for you and we will be unable to accept a return unless the item is defective as determined by the factory it was bought from.

  • Special Order
  • FREE Shipping

Have a question about this product?

Start selecting options

Use the menu on the right to select available options.
After all options have been chosen, you can add to cart.

Choose Cylinder:

Need Help Deciding? QH chevron down
Standard 1-1/8" Mortise Cylinder with LA Keyway Keyed Different
No Cylinder Needed (LC) Subtract -($41.40)
60-Prepped for Removable Core, core not included
70- Prepped for Small Format Interchangeable Core, core not included

Help Me Decide

Standard 1-1/8” mortise cylinder with LA keyway, keyed different

Standard Sargent mortise cylinder

60-repped for Sargent full size removable core (core not included)

  • Easily rekeyed without disassembling entire lock
  • Interchangeable with Sargent mortise locks, exit devices, cylindrical locks , padlocks and auxiliary locks

LC (less cylinder)

Cylinder not included

70-Prepped for Small Format Interchangeable Core(core not included)





Choose Handing:

Need Help Deciding? QH chevron down
LH Left Hand
RH Right Hand
LHR Left Hand Reverse
RHR Right Hand Reverse

Help Me Decide

Overview

  • With J style lever and LW1 decorative plate (escutcheon).
  • 2 exposed screws inside of decorative plate.
  • Satin chrome finish.
  • Includes 1-1/8" mortise cylinder.
  • Complies with ADA- American Disability Act.
  • Backset- 2-3⁄4".
  • For doors 1-3⁄4" thick.
  • Body is 4-3/32" deep x 5-31/32" high.
  • Escutcheon is
  • 8" H x 2" W.

Available Options: Choose Options Above

  • Cylinder: info icon

    • Standard 1-1/8" Mortise Cylinder with LA Keyway Keyed Different
    • No Cylinder Needed (LC)
    • 60-Prepped for Removable Core, core not included
    • 70- Prepped for Small Format Interchangeable Core, core not included
  • Handing: info icon

    • LH Left Hand
    • RH Right Hand
    • LHR Left Hand Reverse
    • RHR Right Hand Reverse

More Info

  • ANSI F04, 05 Entry or office function 8205
  • Key outside retracts latchbolt when outside lever is locked.
  • Lever inside retracts latchbolt only, outside Lever remains locked.
  • Lever outside is locked/unlocked by thumb turn inside or by key outside.
  • Certified to ANSI/BHMA A156.13 Series 1000 Operational Grade 1 and Security Grade 1 with all standard trims.
  • Exceeds cycle testing requirements by 14 times the ANSI/BHMA A156.13 Grade 1 standard.
  • Meets positive pressure requirements UL 10C and UBC 7-2.
  • UL and UL Listed safety standards for A label (3 hour fire door).
  • 4-1/2" minimum stile.
  • Strike-ANSI Standard A115.1; 4-7⁄8", 1-1/4" curved lip, non-handed
  • Outside front plate-8" x 1-1⁄4".
  • Latchbolt - Stainless steel 3⁄4" projection one-piece, anti-friction reversible.
