Sargent 8243LNF-26D-LA-KD

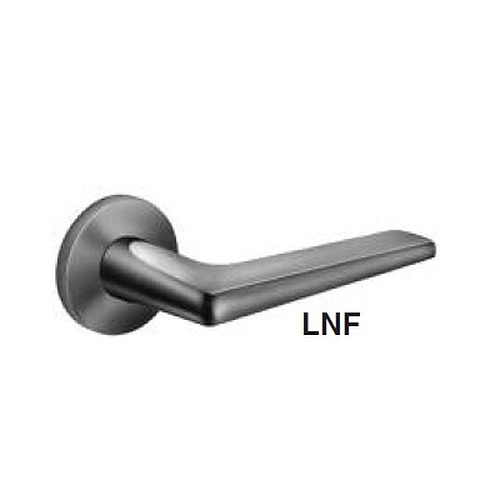

Special Order Apartment Corridor Door Function Complete Mortise Lock with F Style Lever and Rose

Get a Quote
Special Order non-stock item Requires 6 week lead time

SKU: 8243LNF-26D-LA-KD

Choose Options Below

Complete mortise locks contain everything needed for new or replacement installation. The Sargent 8243 Apartment Corridor Door function mortise lock, Key outside retracts both latch and deadbolt, lever outside remains locked. Lever outside is locked by toggle or projecting deadbolt. Lever outside is unlocked by toggle only. With F style lever and LN style rose.

Because this is not a stock item we must order it specifically for you and we will be unable to accept a return unless the item is defective as determined by the factory it was bought from.

  • Special Order
  • FREE Shipping

Have a question about this product?

Start selecting options

Use the menu on the right to select available options.
After all options have been chosen, you can add to cart.

Choose Handing:

Need Help Deciding? QH chevron down
LH Left Hand
RH Right Hand
LHR Left Hand Reverse
RHR Right Hand Reverse

Help Me Decide

Overview

  • With F style lever.
  • LN rose has a 2" diameter.
  • Satin chrome finish.
  • Includes 1-1/8" mortise cylinder.
  • Complies with ADA- American Disability Act.
  • Backset- 2-3⁄4".
  • For doors 1-3⁄4" thick.
  • Body is 4-3/32" deep x 5-31/32" high.

Available Options: Choose Options Above

  • Handing: info icon

    • LH Left Hand
    • RH Right Hand
    • LHR Left Hand Reverse
    • RHR Right Hand Reverse

More Info

  • Apartment Corridor Door function 8243.
  • Key retracts both latchbolt and deadbolt, lever outside remains locked.
  • Lever outside is locked by toggle or projecting deadbolt.
  • Lever outside is unlocked by toggle only.
  • Lever inside always retracts latchbolt and deadbolt simultaneously,lever outside remains locked.
  • Certified to ANSI/BHMA A156.13 Series 1000 Operational Grade 1 and Security Grade 1 with all standard trims.
  • Meets positive pressure requirements UL 10C and UBC 7-2.
  • Exceeds cycle testing requirements by 14 times the ANSI/BHMA A156.13 Grade 1 standard.
  • UL and UL Listed safety standards for A label (3 hour fire door).
  • 4-1/2" minimum stile.
  • Strike-ANSI Standard A115.1; 4-7⁄8" high, 1-1/4" curved lip, non-handed
  • Outside front plate-8" x 1-1⁄4".
  • Latchbolt - Stainless steel 3⁄4" projection one-piece, anti-friction reversible.
