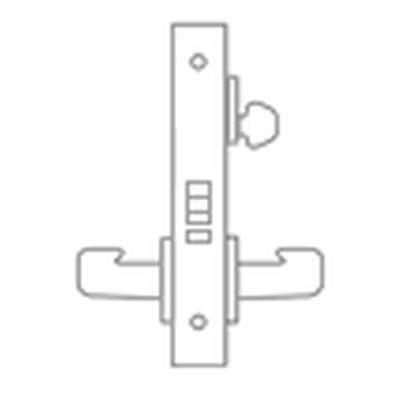

Sargent 8270 Electrical Fail Safe Mortise Lock Body
SKU: 8270 A mortise lock is one that requires a cutout in the edge of the door to accommodate the lock body. The Sargent 8270 solenoid activated, electrical Fail Safe mortise lock body provides maximum security, performance and durability. Ideally suited for security and restricted access areas in schools, computer rooms, offices, banks, equipment rooms, laboratories, pharmacies and hospitals. Sargent 8200 electromechanical mortise locks are designed to handle single opening, stand alone applications, or can be readily integrated into sophisticated access control systems. Mortise lock bodies can be easily replaced but do not include the knob, lever or cylinder.
- Instructions & Templates
8270 Electrical Fail Safe Mortise Lock Body
Serial no. / SKU: 8270Product Overview
- Solenoid activated mortise lock
- 70 function - Power ON, locks outsidelever (by solenoid)
- Voltage: 12VDC or 24VDC Regulated. Full wave rectification installed inside the lockbody
- Lockbodies include outside front, strike, and mounting screws.
- Backset- 2-3⁄4" only
- For doors 1-3⁄4" thick standard
8270 Electrical Fail Safe Mortise Lock Body
Serial no. / SKU: 8270Technical Specifications
- 70 Electrical Fail Safe - 8270
- Solenoid activated mortise lock
- 70 function - Power ON, locks outsidelever (by solenoid)
- Key outside retracts latchbolt, when the lever outside is locked
- Lever outside retracts latchbolt except when lever outside is locked
- Lever outside can only be locked with the solenoid
- Lever inside always retracts latchbolt
- Auxiliary deadlatch
- Current: .25A at 24VDC or .5A at 12VDC
- Operating Temp.: Max.151 degrees, Min. 31 degrees
-
UL and CUL listed for use on Fire Doors
-
Mortise cylinder not included.
- Trim not included.
