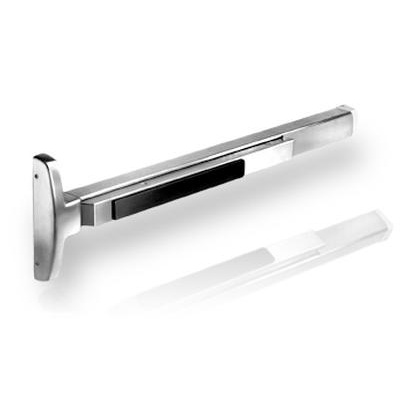

Sargent 8410 Narrow Style Concealed Vertical Rod Exit Device
SKU: 8410 Sargent 8410, exit only narrow style concealed vertical rod exit device. Designed for narrow stile applications such as full glass doors. 1-3/4"minimum stile width required. All functions determined by outside trim. Exit only function, no outside operation. Trim available separately.
- Instructions & Templates
Narrow Style Concealed Vertical Rod Exit Device
Serial no. / SKU: 8410Product Overview
- Designed for narrow stile applications such as full glass doors
- Door Types- Hollow metal or extruded aluminum. 1-3/4" thick
- 1-3/4" minimum stile width required. Stile must be hollow with inside dimension of at least 1-3/8" square
- Exit only function
- Opening Height - 96" for door height.
- All functions determined by outside trim
- Handed. Specify RHRB or LHRB.
Narrow Style Concealed Vertical Rod Exit Device
Serial no. / SKU: 8410Technical Specifications
- Top and Bottom Bolts, Stainless steel. Top and bottom bolt travel 7/16"
- Rail size-F- 33" to 36", J - 37" to 42", G - 43" to 48"
- Fasteners-Supplied standard with machine screws.
- Devices are ANSI A156.3 - 2001 Grade 1
- Hex key dogging standard, cylinder dogging optional
- Strike- 650 Top Strike & 606 Bottom Strike (Panic and Fire Rated)
- Device Centerline from Finished Floor 41"
- Center Case Dimensions 8-3/8" x 2-5/8"
- Projection-Pushbar Neutral - 3" Pushbar Depressed - 2-1/8"
Available as a special order in other finishes, Fire Rated and with additional trim. Please contact us directly to arrange your special order.
