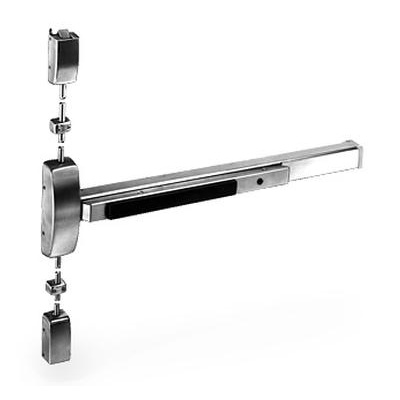

Surface Vertical Rod Exit Device

Product Overview

• Exit only function, no trim
• Door Types - Wood or metal 1-3/4" thick door
• Door/Opening Height - 84".
• Handed. Specify RHRB or LHRB
• 4-1/2" minimum stile 3-1/2" minimum stile without trim.

Surface Vertical Rod Exit Device

Technical Specifications

• Rail size-F- 33" to 36", J - 37" to 42", G - 43" to 48"
• Strike- 646 Top Strike standard (Panic and Fire Rated), 624 Bottom Strike, Standard.
• Two point latching, top and bottom of the door
• Devices are ANSI A156.3, 2001 Grade 1
• Mounting Fasteners - Supplied standard with wood and machine screws.
• Top & bottom latchbolt projection adjustable through center case
• Standard bottom latch compatible with latchtrack thresholds (by others)
• Rods are 1/2" brass, bronze or stainless steel
• Hex key dogging standard, cylinder dogging optional
• UL Panic listed
• Device Centerline from Finished Floor 41"
• Center Case Dimensions - 8-3/8" x 2-5/8"
• Projection Pushbar Neutral -3" Pushbar Depressed -2-1/8"
