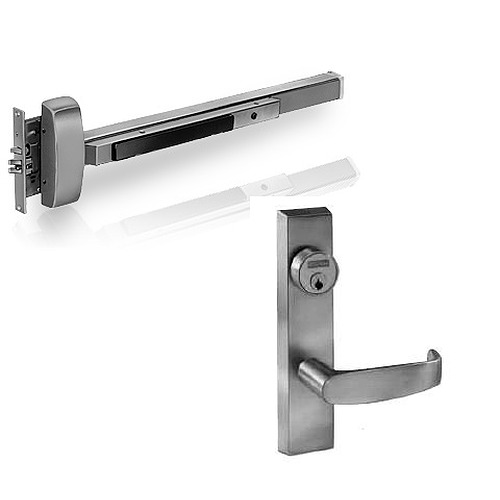

Sargent 8913F-ETL-32D

Special order non stock item with 4 week lead time

• Designed for standard width stile applications on wood and metal doors
• For 1-3/4" thick doors
• Keyed lever (ETL) - key outside locks/unlocks lever. Mortise cylinder included.
• F Rail for 33" to 36" door widths.
• Finish-US32D satin stainless steel.
• 4-1/2" minimum stile
• Latch Bolt-brass nickel plated, 3/4" throw, anti-friction
• Dead Latch-brass, sliding type
• Hex key dogging standard.
• Device can be cut to size in the field.
• Handed: Specify RHR or LHR

Available Options: Choose Options Above

• Handing:

  Handing

  ×

  Face the outside of the door to determine the hand. Here are some rules to follow:

  • The outside of an exterior door is the street or entrance side.
  • The outside of a room door is the hall side.
  • The outside of a single communicating door is the side from which the hinges are not visible when the door is closed.
  • The outside of a closet door is the room or hall side.



  ​Doors equipped with exit devices swing out only, and therefore exit device handing is known as reverse bevel.

  The door is Left Hand Reversed if:

     • While you are standing outside of the room facing the door, the hinges are on your left side.

  The door is Right Hand Reversed if:

     • While you are standing outside of the room facing the door, the hinges are on your right side.

  Close
  • Left Hand Reverse - LHR
  • Right Hand Reverse - RHR
