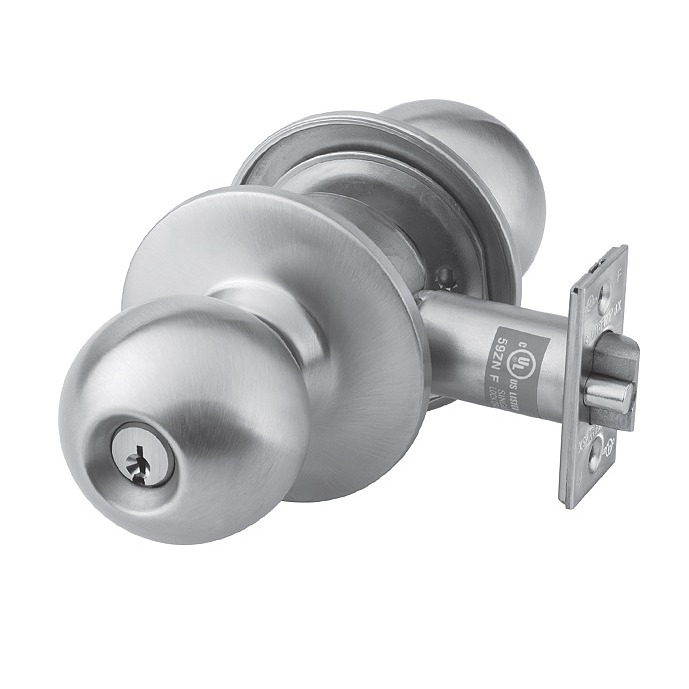

Sargent 8XG04

Special Order Heavy Duty Storeroom Knob Lock

Get a Quote
Special Order non-stock item Requires 6 week lead time

SKU: 8XG04

Choose Options Below

Sargent 8XG04 keyed Storeroom function knob lock, outside knob always locked. Inside knob always unlocked. With it's extra heavy duty construction and interlocking latch and aligning tubes the Sargent 8XG04 Storeroom function commercial knob lock meets the most demanding needs for high traffic commercial or industrial applications.

Because this is not a stock item we must order it specifically for you and we will be unable to accept a return unless the item is defective as determined by the factory it was bought from.

  • Special Order
  • FREE Shipping

Have a question about this product?

Start selecting options

Use the menu on the right to select available options.
After all options have been chosen, you can add to cart.

Choose Finish:

US32D-Satin Stainless Steel US32D-Satin Stainless Steel
US3- Polished Brass US3- Polished Brass
10BE-Dark Bronze Equivalent 10BE-Dark Bronze Equivalent

Choose Cylinder:

LA Keyway- 6 Pin Cylinder-Keyed Different
No Cylinder-(LC) Subtract -($43.66)

Overview

Special order non stock item with 2 week lead time.
  • Keyed storeroom function
  • ANSI - Meets ANSI A156.2 Series 4000 Grade 1
  • For doors 1-3/8" thick adjustable to 2"
  • Cylinder-Sargent 6 pin LA cylinder keyed different
  • Backset - 2-3/4". The backset is the distance from the edge of the door to the center of the 2-1/8-inch bore hole in the face of the door.
  • Latch-2-1/4" x 1-1/8" Front, 1/2" throw
  • Strike- 4-7/8" ANSI A-115.2 curved lip strike with 1-1/4" curved lip

Available Options: Choose Options Above

More Info

  • 04 Storeroom or Closet function
  • Key outside retracts latch
  • Knob outside locked at all times
  • Knob inside retracts latchbolt
  • Deadlocking latch
  • ANSI F86
  • Door Prep - 161 Door Prep (2-1/8" cross-bore with a 2-3/4" backset, and a
    1" edge-bore with a mortise 1-1/8" wide and 2-1/4" high)
  • Minimum Stile 4-1/4"
  • L style rose with B style knob.
  • UL Listed to U.S.A. and Canadian safety standards.
  • Listed for 3 Hour Doors
