Schlage B560P-C

Standard Duty Single Cylinder Deadbolt

SKU: B560P-C

Price: $44.00

Choose Options Below

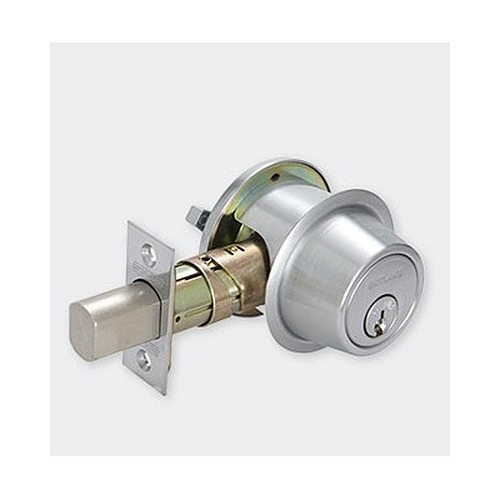

The Schlage B560P single cylinder tubular deadbolt is a Grade 2 deadbolt for medium duty commercial and heavy duty residential applications. See more product information below

  • In Stock!
  • FREE Shipping
  • No Hassle Returns
  • ×
    Getting shipping methods...

Have a question about this product?

Price: $44.00

Choose Options

Start selecting options

Use the menu on the right to select available options.
After all options have been chosen, you can add to cart.

Choose Finish:


  • Standard duty grade 2 single cylinder deadbolt.
  • Deadbolt thrown or retracted by key from outside or by inside turn.
  • Adjustable backset deadbolt - 2 3/8" or 2 3/4".
  • Door thickness 1-3/4".
  • Strike 1 1/8” x 2 3/4”, Square corner, box.
  • Deadbolt 1” x 2 1/4”, Square corner faceplate, 1” housing diameter, 1” throw.
  • Cylinder with C keyway included.

Available Options: Choose Options Above

Tech Specs

  • ANSI A156.5, 2001 Grade 2.
  • ADA compliant thumbturn.
  • Fits 21/8” prep standard and anti-pry shield can be removed to fit 1/2” prep.



Instructions & Templates

Click on the links below to download helpful instructions & templates for this product

Standard Duty Single Cylinder Deadbolt
