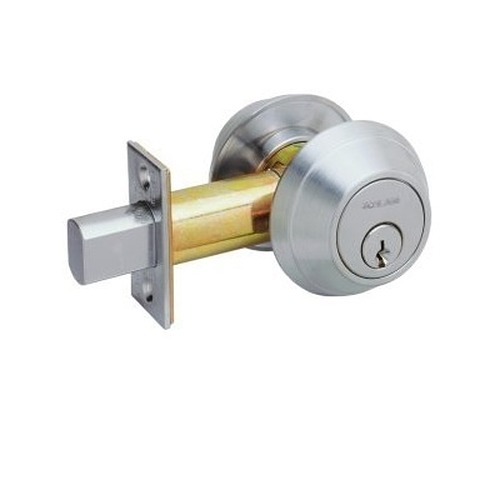

Schlage B660P-626

Heavy Duty Single Cylinder Deadbolt

SKU: B660P-626

Price: $99.00

Choose Options Below

The schlage B660P single cylinder deadbolt not only provides added protection for exterior entrance doors, they can also protect common use areas like pool gates and storage/utility spaces from unauthorized access. Choose the 600 series for Grade 1 security in high-traffic commercial applications. See more product information below

  • In Stock!
  • FREE Shipping
  • No Hassle Returns
  • ×
    Getting shipping methods...

Have a question about this product?

Price: $99.00

Choose Options

Start selecting options

Use the menu on the right to select available options.
After all options have been chosen, you can add to cart.

Choose Backset:

Help Me Decide

The backset is the distance from the edge of the door to the center of the 2-1/8-inch bore hole in the face of the door.

  • Most commercial doors have a 2-3/4" backset.
  • Most residential doors have a 2-3/8' backset


  • Heavy duty grade 1 single cylinder deadbolt,
  • Deadbolt thrown or retracted by key outside or thumbturn inside.
  • Schlage cylinder with C123 keyway.
  •  B600 series meets or exceeds A156.5 Grade 1 strength and operational requirements.
  • Satin chrome finish.
  • For wood or hollow metal doors.
  • 2-3/4" or 2-3/8" backset.
  • 1" throw, high-strength steel alloy deadbolt with hardened steel roller resists sawing and kick-in attacks.
  • Satin chrome finish-626.

Available Options: Choose Options Above

  • Backset: info icon

    • 2-3/4"
    • 2-3/8"

Tech Specs

  • B600-Series locks are UL10B Listed auxiliary locks for A label single doors, 4 ’ x 8 ’.
  • Free-spinning solid cylinder collar resists wrenching and prying.
  • Hardened steel ball-bearings protect mounting bolts from drill attack.
  • Metal shield protects bolt from ice-pick attack through the door.
  • Large inside thumbturn makes it easy to throw and retract deadbolt.
  • Front-1-1/8” x 2-1/4”  square corner.
  • Strike 1 1/8” x 2 3/4”, Square corner.



Instructions & Templates

Click on the links below to download helpful instructions & templates for this product

Heavy Duty Single Cylinder Deadbolt
