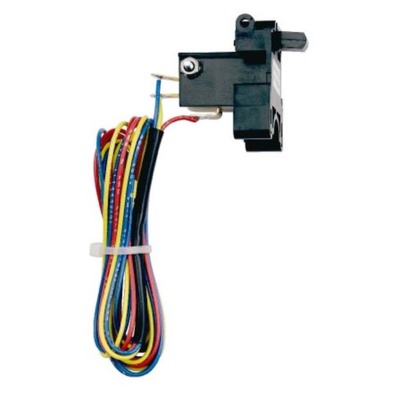

Von Duprin 050251 RX (request to exit) Switch Kit

Von Duprin 050251 RX (request to exit) Switch Kit

This product is non-returnable! SKU: 050251 Von Duprin RX request to exit field install switch kit. Signal switch feature is used to signal the use of an opening from the push side. For 98/99 and 33A series exit devices.

Overview
Tech Specs

Instructions & Templates

RX (request to exit) Switch Kit

Serial no. / SKU: 050251

Product Overview

For 98/99 and 33A series exit devices
Field install.
RX (request to exit) Signal Switch feature is used to signal the use of an opening from the push side. When the push pad is depressed, the switch is activated. These devices are equipped with an internal SPDT (single pole double throw) switch that monitors the touch bar.
Switch rated 0.5 amperes @ 24VAC/DC resistive

RX (request to exit) Switch Kit

Serial no. / SKU: 050251

Technical Specifications

The device can be connected to a security console, or may be used as a single door alarm when used with a horn and power supply.
A continuous current electric transfer must be used for transferring power from the frame to the door.
The RX switch option should not be used to control a load, but as a signalling switch (0.5 amps. resisitive maximum).
