Von Duprin 2227EO

Surface Mounted Vertical Rod Exit Device

Quick Product Details

  • Vertical Rod Exit Device
  • Exit-Only Function
  • Surface Mounted
Price: $612.00 /each

SKU: 2227EO

Choose Options Below

This Von Duprin 2227EO is a fantastic vertical rod exit device that meets ANSI 156.3-2001 Grade 1 standards and is UL listed for panic exit hardware. It is a surface mounted device supplied as exit only function without a trim.

  • Stock Item
  • Order in the next 20 hours 24 minutes to ship TOMORROW
  • FREE Same-Day ShippingWhen ordered before 2PM ET
  • No Hassle Returns
  • ×
    Getting shipping methods...

Have a question about this product?

Price: $612.00

Start selecting options

Use the menu on the right to select available options.
After all options have been chosen, you can add to cart.

Choose Finish:

SP28 - Sprayed Aluminum SP28 - Sprayed Aluminum
SP313 - Sprayed Dark Bronze SP313 - Sprayed Dark Bronze

Choose Rail Size:

3 FT
4 FT +$14.00

Help Me Decide

  • 3’ rail for 28” to 36”’ door width
  • 4’ rail for 34” to 48” door width

Choose Fire Rated:

UL Fire Label Exit Device (2227-F) +$189.00
Non Fire Rated

Help Me Decide

  • Fire Rated Exit Device or Door - Constructed to provide a specific degree of fire protection. It is typically rated for a period of time as resistant to penetration by fire.



Choose VD Alarm Kit 22:

No alarm Kit
3Ft  Alarm Kit + $443.00 3Ft Alarm Kit +$443.00
4Ft Alarm kit + $443.00 4Ft Alarm kit +$443.00

Help Me Decide

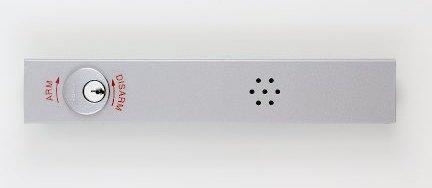

  • Von Duprin 22ALK alarm kit for 22 series exit devices.
  • When the touchbar is depressed, the horn sounds to provide an audible means of signaling that the opening has been violated
  • Requires a 1-1/4" mortise cylinder to arm/disarm, not included.
  • The unit operates on one standard 9-volt alkaline battery
  • When the ALK is used, standard dogging is removed.

Overview


Quality:
  • Meets ANSI 156.3-2001 Grade 1 standards
  • UL listed for panic exit
  • 3 year Limited warranty

Available Options: Choose Options Above

  • Finish:

  • Rail Size: info icon

    • 3 FT
    • 4 FT
  • Fire Rated: info icon

    • UL Fire Label Exit Device (2227-F)
    • Non Fire Rated
  • VD Alarm Kit 22: info icon

    • No alarm Kit
    • 3Ft Alarm Kit
    • 4Ft Alarm kit

Product at A Glance

  • For all types of single and double doors with mullion
  • Covers stock hollow metal doors with 86 or 161 cutouts
Style Vertical Rod exit device
Mounting Surface mounted
Trim Exit Only Function - no trim included
Handing Non-handed
Door Thickness 1-3/4" to 2-1/4"
Door Height 7' (standard) extension rods available for door heights up to 10'
Dogging Feature Hex key dogging standard on non-fire-rated devices
Strike - Fire-rated:
- Top: 299F - dull black finish
- Bottom: 304L - unfinished
- Non-fire-rated:
- Top: 299 - dull black finish
- Bottom: 248L4 & 304L - unfinished
Latch Bolt Deadlocking, anti-friction top and bottom bolt
Throw 5/8"
Door Undercut 1/4" from finished floor recommended, 3/4" maximum or 1/8" from threshold
Vertical Rods 1/2" square tubing
Measurement from Finished Floor to Centerline of Device 39-13/16"
Stile Minimum 3-5/8" wide
