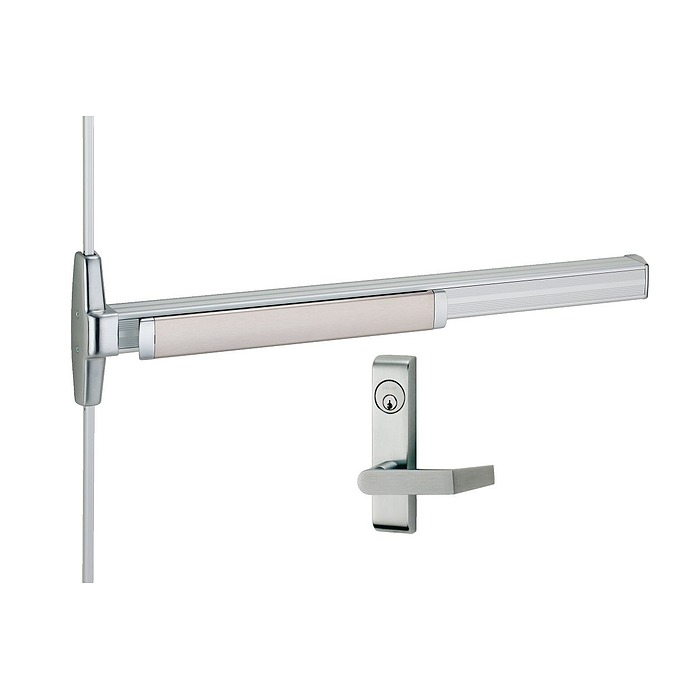

Von Duprin 3327A-L

Narrow Stile Surface Mounted Vertical Rod Device with Lever

Quick Product Details

Vertical Rod Exit Device
With Lever Trim
Surface Mounted

Price: $2,583.00 /each

SKU: 3327A-L

Choose Options Below

This Von Duprin 3327A-L is a vertical rod exit device for narrow stile applications. It is supplied with the lever trim in which a key will lock and unlock the lever. This product is available in various finishes and for right hand reverse and left hand reverse doors.

Stock Item
Order in the next 56 minutes to ship TODAY
FREE Same-Day ShippingWhen ordered before 2PM ET
No Hassle Returns
×
Enter ZIP Code to see when you will get this item

Have a question about this product?

or for better pricing

Price: $2,583.00

Start selecting options

Use the menu on the right to select available options.
After all options have been chosen, you can add to cart.

Choose Finish:

US28 (628) Anodized Aluminum

313 Dark Bronze +$58.00

US26D (626) Satin Chrome +$348.00

Choose Handing:

Left Hand Reverse (LHR)

Right Hand Reverse (RHR)

Help Me Decide

Face the outside of the door to determine the hand. Here are some rules to follow:

The outside of an exterior door is the street or entrance side.
The outside of a room door is the hall side.
The outside of a single communicating door is the side from which the hinges are not visible when the door is closed.
The outside of a closet door is the room or hall side.

Doors equipped with exit devices swing out only, and therefore exit device handing is known as reverse bevel.

The door is Left Hand Reversed if:

• While you are standing outside of the room facing the door, the hinges are on your left side.

The door is Right Hand Reversed if:

• While you are standing outside of the room facing the door, the hinges are on your right side.

Choose Cylinder 1-1/4" Mortise:

1-1/4" Satin Chrome Mortise Cylinder Schlage C Keyway +$17.00

No Mortise cylinder needed

Help Me Decide

Mortise cylinder includes 2 keys.

Overview

Quality:

Meets ANSI 156.3-2001 Grade 1 standards
UL listed for panic exit
3 year Limited warranty

Special Orders Available:

Available in 4’ rail size
More unlisted finishes available
SS - signal switches available
EL Electric Latch Retraction available
UL Fire-rated devices available

Available Options: Choose Options Above

Finish:
Handing:
Handing
Face the outside of the door to determine the hand. Here are some rules to follow:

The outside of an exterior door is the street or entrance side.

The outside of a room door is the hall side.

The outside of a single communicating door is the side from which the hinges are not visible when the door is closed.

The outside of a closet door is the room or hall side.

Doors equipped with exit devices swing out only, and therefore exit device handing is known as reverse bevel.

The door is Left Hand Reversed if:

• While you are standing outside of the room facing the door, the hinges are on your left side.

The door is Right Hand Reversed if:

• While you are standing outside of the room facing the door, the hinges are on your right side.
- Left Hand Reverse (LHR)
- Right Hand Reverse (RHR)
Cylinder 1-1/4" Mortise:
Cylinder 1-1/4" Mortise
Mortise cylinder includes 2 keys.
- 1-1/4" Satin Chrome Mortise Cylinder Schlage C Keyway
- No Mortise cylinder needed

Product at A Glance

For all types of single and double doors with mullion
Covers stock hollow metal doors with 86 or 161 cutouts

Style	Vertical Rod exit device
Mounting	Surface mounted
Trim	Lever trim -360L: - Key locks and unlocks lever
Handing	Handed
Door Thickness	1-3/4" (standard)
Door Height	7' (standard) Extension rods available 1' or 3' for doors over 7'
Dogging Feature	Hex key dogging standard, cylinder dogging optional
Strike	- Top: 266 - dull black finish - Bottom: 248L4 & 304L - unfinished
Latch Bolt	Deadlocking, anti-friction top and bottom bolt
Throw	5/8"
Door Undercut	1/4"
Vertical Rods	1/2" square tubing
Projection	- Pushbar neutral: 3-13/16" - Pushbar depressed: 3-1/16"
Measurement from Finished Floor to Centerline of Device	39-5/8"
Center Case Dimensions	8-3/16" x 2-13/32" x 1-9/16
Mechanism Case Dimension	2-1/4" x 2-1/4"
Top and Bottom Latch	4-1/2" x 2-1/8" x 1-1/2"
Top Rod Length	34-15/16"
Bottom Rod Length	31-1/4"
Rail Size	3'
Stile	Minimum 1-3/4" wide with standard strikes
