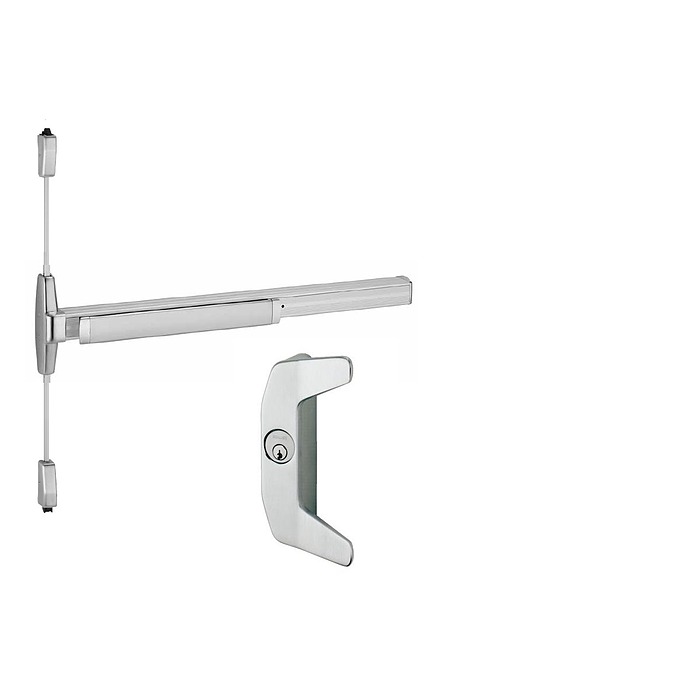

Von Duprin 3327A-NL-3FT

Narrow Stile Surface Mounted Vertical Rod Device with Night latch trim

Quick Product Details

Vertical Rod Exit Device
With Night Latch Function Trim
Surface Mounted

Price: $2,524.00 /each

SKU: 3327A-NL-3FT

Choose Options Below

This Von Duprin 3327A-NL-3FT narrow stile vertical rod exit device is ideal for applications where the stiles are as narrow as 1-3/4". This product is surface mounted and supplied with the 386NL night latch function trim. It is a handed product.

Stock Item
Order in the next 14 hours 3 minutes to ship TOMORROW
FREE Same-Day ShippingWhen ordered before 2PM ET
No Hassle Returns
×
Enter ZIP Code to see when you will get this item

Have a question about this product?

or for better pricing

Price: $2,524.00

Start selecting options

Use the menu on the right to select available options.
After all options have been chosen, you can add to cart.

Choose Finish:

US28 (628) Anodized Aluminum

313 Dark Bronze +$38.00

US26D (626) Satin Chrome +$348.00

Choose Handing:

Left Hand Reverse - LHR

Right Hand Reverse - RHR

Help Me Decide

Face the outside of the door to determine the hand. Here are some rules to follow:

The outside of an exterior door is the street or entrance side.
The outside of a room door is the hall side.
The outside of a single communicating door is the side from which the hinges are not visible when the door is closed.
The outside of a closet door is the room or hall side.

Doors equipped with exit devices swing out only, and therefore exit device handing is known as reverse bevel.

The door is Left Hand Reversed if:

• While you are standing outside of the room facing the door, the hinges are on your left side.

The door is Right Hand Reversed if:

• While you are standing outside of the room facing the door, the hinges are on your right side.

Choose Cylinder Rim:

Recommended Rim Cylinder Schlage C Keyway Satin Chrome (QH200) +$17.00

No Rim Cylinder Needed

Help Me Decide

Rim cylinder includes 2 keys.

Choose EL (Electric Latch Retraction):

3FT EL- Electric Latch Retraction (050070) +$1,026.00

4FT EL- Electric Latch Retraction (050078) +$1,026.00

No EL (Electric Latch Retraction)

Help Me Decide

The EL feature allows for the remote unlatching of exit devices. A control station operator can flip a switch to retract the latch bolt and immediately change an exit door to push-pull operation.
EL devices are also useful with automatic door operators, and may be applied to fire-rated applications when under the control of an automatic fire alarm system.
The EL option does not include the power transfer from door to frame, the power supply, or the control operator. Refer to EPT-2 power transfer and the PS914-2RS power supply.

Choose VD Alarm kit 33/99:

No Alarm Kit

3' Alarm Kit, Mortise Cylinder Not Included. +$599.00

4' Alarm Kit, Mortise Cylinder Not Included +$599.00

Help Me Decide

ALK battery alarm kit is a simple yet effective way to deter unauthorized use of an opening.
The ALK kit contains an internal horn. When the touch bar is depressed, the horn sounds to provide an audible
means of signaling that the opening has been violated.
Requires a 1-1/4" mortise cylinder to arm/disarm, not included.
The unit operates on one standard 9-volt alkaline battery
When the ALK is used, standard dogging is removed.

Overview

Quality:

Meets ANSI 156.3-2001 Grade 1 standards
UL listed for panic exit
3 year Limited warranty

Special Orders Available:

Available with 4’ rail size
More unlisted finishes available
SS - signal switches available
EL Electric Latch Retraction available
UL Fire-rated devices available

Available Options: Choose Options Above

Finish:
Handing:
Handing
Face the outside of the door to determine the hand. Here are some rules to follow:

The outside of an exterior door is the street or entrance side.

The outside of a room door is the hall side.

The outside of a single communicating door is the side from which the hinges are not visible when the door is closed.

The outside of a closet door is the room or hall side.

Doors equipped with exit devices swing out only, and therefore exit device handing is known as reverse bevel.

The door is Left Hand Reversed if:

• While you are standing outside of the room facing the door, the hinges are on your left side.

The door is Right Hand Reversed if:

• While you are standing outside of the room facing the door, the hinges are on your right side.
- Left Hand Reverse - LHR
- Right Hand Reverse - RHR
Cylinder Rim:
Cylinder Rim
Rim cylinder includes 2 keys.
- Rim Cylinder Schlage C Keyway Satin Chrome (QH200)
- No Rim Cylinder Needed
EL (Electric Latch Retraction):
EL (Electric Latch Retraction)
The EL feature allows for the remote unlatching of exit devices. A control station operator can flip a switch to retract the latch bolt and immediately change an exit door to push-pull operation.

EL devices are also useful with automatic door operators, and may be applied to fire-rated applications when under the control of an automatic fire alarm system.

The EL option does not include the power transfer from door to frame, the power supply, or the control operator. Refer to EPT-2 power transfer and the PS914-2RS power supply.
- 3FT EL- Electric Latch Retraction (050070)
- 4FT EL- Electric Latch Retraction (050078)
- No EL (Electric Latch Retraction)
VD Alarm kit 33/99:
VD Alarm kit 33/99
ALK battery alarm kit is a simple yet effective way to deter unauthorized use of an opening.

The ALK kit contains an internal horn. When the touch bar is depressed, the horn sounds to provide an audible
means of signaling that the opening has been violated.

Requires a 1-1/4" mortise cylinder to arm/disarm, not included.

The unit operates on one standard 9-volt alkaline battery

When the ALK is used, standard dogging is removed.
- No Alarm Kit
- 3' Alarm Kit, Mortise Cylinder Not Included.
- 4' Alarm Kit, Mortise Cylinder Not Included

Product at A Glance

For all types of single and double doors with mullion
Covers stock hollow metal doors with 86 or 161 cutouts

Style	Vertical Rod exit device
Mounting	Surface mounted
Trim	Night Latch trim -386NL
Handing	Handed
Door Thickness	1-3/4" (standard)
Door Height	7' (standard) Extension rods available 1' or 3' for doors over 7'
Dogging Feature	Hex key dogging standard, cylinder dogging optional
Strike	- Top: 266 - dull black finish - Bottom: 248L4 & 304L - unfinished
Latch Bolt	Deadlocking, anti-friction top and bottom bolt
Throw	5/8"
Door Undercut	1/4"
Vertical Rods	1/2" square tubing
Projection	- Pushbar neutral: 3-13/16" - Pushbar depressed: 3-1/16"
Measurement from Finished Floor to Centerline of Device	39-5/8"
Center Case Dimensions	8-3/16" x 2-13/32" x 1-9/16
Mechanism Case Dimension	2-1/4" x 2-1/4"
Top and Bottom Latch	4-1/2" x 2-1/8" x 1-1/2"
Top Rod Length	34-15/16"
Bottom Rod Length	31-1/4"
Rail Size	3'
Stile	Minimum 1-3/4" wide with standard strikes
