Von Duprin

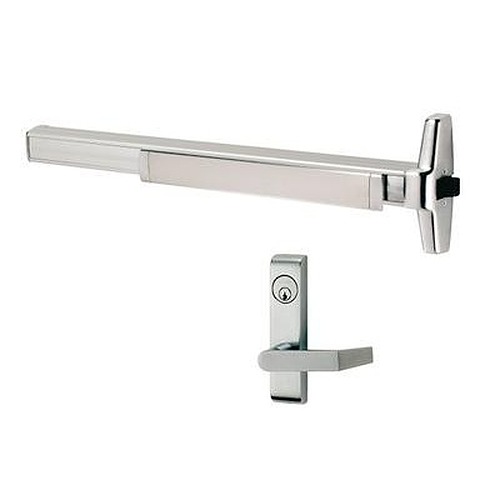

Von Duprin Narrow Stile Rim Exit Device with Lever Trim Exit Devices / Panic Bars



Von Duprin 33A-L

Narrow Stile Rim Exit Device with Lever Trim

Quick Product Details

  • Rim Exit Device
  • For Narrow Stile
  • With Lever Trim

or for better pricing

Price: $1,955.00 /each

SKU: 33A-L

Choose Options Below

This Von Duprin 33A-L is s narrow stile rim exit device with lever trim that is operated with the use of a key. A 1-1/4"mortise cylinder is required for use with this trim. Available with electric latch retraction and for right hand reverse and left hand reverse application.

  • Stock Item
  • Order in the next 1 hour 31 minutes to ship TODAY
  • FREE Same-Day ShippingWhen ordered before 2PM ET
  • No Hassle Returns
  • ×
    Getting shipping methods...

Have a question about this product?

or for better pricing
Price: $1,955.00

Start selecting options

Use the menu on the right to select available options.
After all options have been chosen, you can add to cart.

Choose Finish:

US28 (628) Anodized Aluminum US28 (628) Anodized Aluminum
313 Dark Bronze Painted + $23.00 313 Dark Bronze Painted +$23.00
US26D (626) Satin Chrome + $298.00 US26D (626) Satin Chrome +$298.00

Choose Handing:

Left Hand Reverse (LHR)
Right Hand Reverse (RHR)

Help Me Decide

Face the outside of the door to determine the hand. Here are some rules to follow:

  • The outside of an exterior door is the street or entrance side.
  • The outside of a room door is the hall side.
  • The outside of a single communicating door is the side from which the hinges are not visible when the door is closed.
  • The outside of a closet door is the room or hall side.



Doors equipped with exit devices swing out only, and therefore exit device handing is known as reverse bevel.

The door is Left Hand Reversed if:

   • While you are standing outside of the room facing the door, the hinges are on your left side.

The door is Right Hand Reversed if:

   • While you are standing outside of the room facing the door, the hinges are on your right side.

Choose Rail Size:

3 FT
4 FT +$17.00

Help Me Decide

  • 3’ rail for 28” to 36”’ door width
  • 4’ rail for 34” to 48” door width

Choose EL (Electric Latch Retraction):

3FT EL- Electric Latch Retraction (050070) +$1,026.00
4FT EL- Electric Latch Retraction (050078) +$1,026.00
No EL (Electric Latch Retraction)

Help Me Decide

  • The EL feature allows for the remote unlatching of exit devices. A control station operator can flip a switch to retract the latch bolt and immediately change an exit door to push-pull operation.
  • EL devices are also useful with automatic door operators, and may be applied to fire-rated applications when under the control of an automatic fire alarm system.
  • The EL option does not include the power transfer from door to frame, the power supply, or the control operator. Refer to EPT-2 power transfer and the PS914-2RS power supply.

Choose 1-1/4:

Satin Chrome 1-1/4 Satin Chrome 1-1/4" mortise cylinder-Schlage C Keyway +$17.00
No Mortise Cylinder

Help Me Decide

  • Includes 2 keys

Overview


Quality:

  • Meets ANSI 156.3-2001 Grade 1 standards
  • UL listed for panic exit
  • 3 year Limited warranty

Special Orders Available:
  • More unlisted finishes available
  • RX, LX or SS switches available
Contact us directly to place your special orders.


Available Options: Choose Options Above

  • Finish:

  • Handing: info icon

    • Left Hand Reverse (LHR)
    • Right Hand Reverse (RHR)

  • Rail Size: info icon

    • 3 FT
    • 4 FT

  • EL (Electric Latch Retraction): info icon

    • 3FT EL- Electric Latch Retraction (050070)
    • 4FT EL- Electric Latch Retraction (050078)
    • No EL (Electric Latch Retraction)

  • 1-1/4: info icon

    • Satin Chrome 1-1/4" mortise cylinder-Schlage C Keyway
    • No Mortise Cylinder

Product at A Glance

Style Narrow stile rim exit device
Function Keyed lever trim - 360L:
- Key locks and unlocks the lever
Handing Handed
Door Thickness 1-3/4" Standard
Stile Minimum width 1-3/4"
Dogging Feature Hex key dogging standard
Center Case Dimensions 8-3/16" X 2-13/32" X 1-9/16"
Mechanism Case Dimensions 2-1/4" X 2-1/4"
Strike 1439 (dull black-finish)
Latch Bolt Deadlocking - 3/4" throw
Projection - Pushbar neutral: 3-13/16"
- Pushbar depressed: 3-1/16"
Measurement from Finished Floor to Centerline of Device - W/o mullion: 39-13/16"
- With mullion: 39-11/16"

Reviews

Q&A

Instructions & Templates

Click on the links below to download helpful instructions & templates for this product

Instructions VD33A Download
Instructions VD360NL Download
Template VD33A Download
Template VD33A WD Download
Template VD360L Download
