Von Duprin 35A-EO

Special Order Narrow Stile Rim Exit Device

Get a Quote
Special Order non-stock item Requires 6 week lead time

SKU: 35A-EO

Choose Options Below

Von Duprin 35AEO, exit only narrow stile exit device for door stiles as narrow as 1-3/4". For all types of single and double doors. Exit only, no outside operation. Trim available separately.

Because this is not a stock item we must order it specifically for you and we will be unable to accept a return unless the item is defective as determined by the factory it was bought from.

  • Special Order
  • FREE Shipping

Have a question about this product?

Start selecting options

Use the menu on the right to select available options.
After all options have been chosen, you can add to cart.

Choose Finish:

US28 (628) Anodized Aluminum US28 (628) Anodized Aluminum
313 Dark Bronze Painted + $3.00 313 Dark Bronze Painted +$3.00
US26D (626) Satin Chrome + $188.00 US26D (626) Satin Chrome +$188.00

Choose Rail Size:

3 FT
4 FT +$12.00

Help Me Decide

  • 3’ rail for 28” to 36”’ door width
  • 4’ rail for 34” to 48” door width

Choose VD Alarm kit 33/99:

No Alarm Kit
3' Alarm Kit, Mortise Cylinder Not Included. + $353.00 3' Alarm Kit, Mortise Cylinder Not Included. +$353.00
4' Alarm Kit, Mortise Cylinder Not Included + $353.00 4' Alarm Kit, Mortise Cylinder Not Included +$353.00

Help Me Decide

  • ALK battery alarm kit is a simple yet effective way to deter unauthorized use of an opening.
  • The ALK kit contains an internal horn. When the touch bar is depressed, the horn sounds to provide an audible
    means of signaling that the opening has been violated.
  • Requires a 1-1/4" mortise cylinder to arm/disarm, not included.
  • The unit operates on one standard 9-volt alkaline battery
  • When the ALK is used, standard dogging is removed.

Overview

  • Narrow stile device

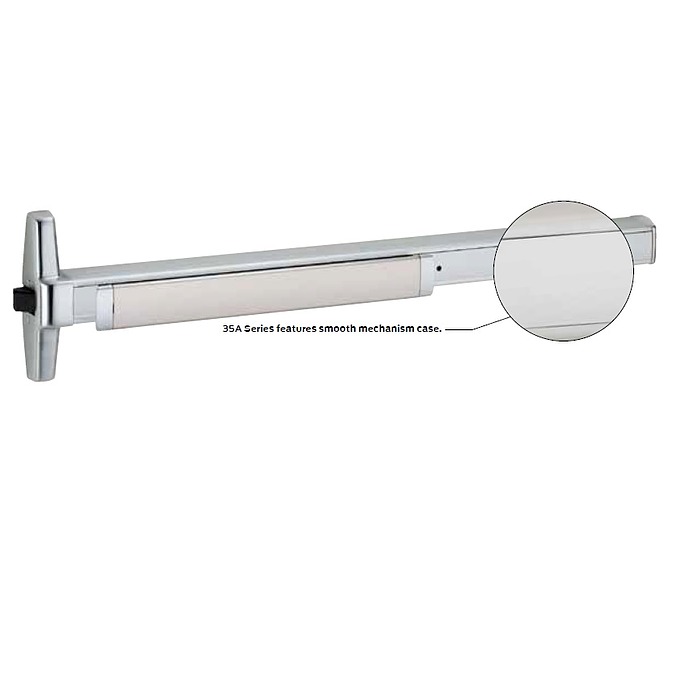

  • 35A Series features smooth mechanism case.
  • Exit Only function-Trim not included.
  • Fits door stiles as narrow as 1-3/4"
  • For doors 1-3/4" thick standard
  • Strike- 1439 – dull black finish
  • Dogging feature- hex key dogging standard
  • Latch Bolt- deadlocking, 3/4" throw

Available Options: Choose Options Above

  • Finish:

  • Rail Size: info icon

    • 3 FT
    • 4 FT
  • VD Alarm kit 33/99: info icon

    • No Alarm Kit
    • 3' Alarm Kit, Mortise Cylinder Not Included.
    • 4' Alarm Kit, Mortise Cylinder Not Included

More Info

  • Device lengths- 3’- 2’ 4" to 3’ Door Size. 4’- 3’ 1" to 4’ Door Size
  • UL listed for Panic Exit Hardware.
  • Devices are ANSI A156.3 – 2001 Grade 1.
  • Device centerline from finished floor-- 39-13/16"
  • Finished floor 39-11/16"
  • Mechanism case dimensions 2-1/4" x 2-1/4"
  • Center case dimensions- 8 -3/16" x 2-13/32" x 1-9/16”
  • Projection pushbar neutral – 3-13/16"
  • Pushbar depressed – 3-1/16"
