Von Duprin 6114

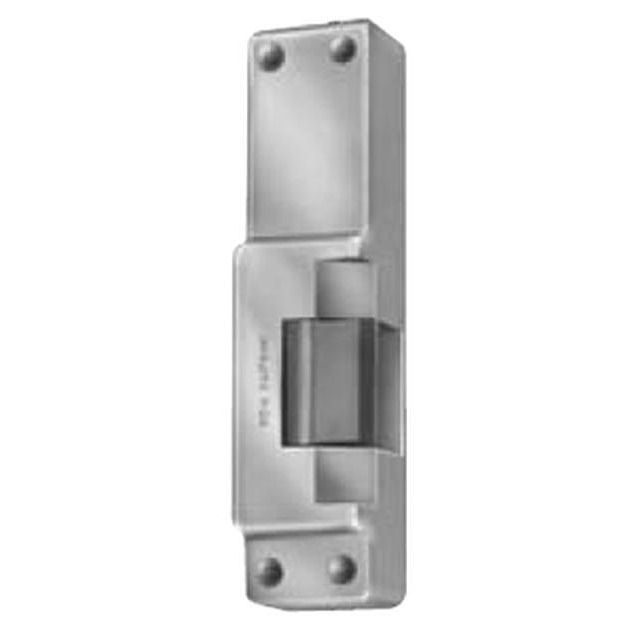

Electric Strike for use with Rim Night Latch

SKU: 6114

Price: $459.00

Choose Options Below

  • Captured valves for high-abuse situations
  • Quik-Install bracket size: 1-3/4" vertical x 6" horizontal.
  • Closer body mounting hole spacing: 1" vertical x 4-5/16" horizontal.
  • Parallel Arm Mounting DC6210, allows inside application of closer on out-swinging doors. Closer is mounted on the push side, with the arm almost parallel to the face of the door. Arm does not project from the opening
  • Meets A156.4, Grade 1.
  • UL /ULC / UL10c Listed for fire and cycle requirements.
  • Barrier-Free Code Compliance, conform to the 5 lbf. maximum door opening force
    requirement for non-fire-rated interior hinged doors
  • Latching speed valve, closing speed valve standard.
  • Multiple backcheck location valve and backcheck intensity valve standard.
  • Standard: high lubricity extreme temperature hydraulic fluid
See more product information below

  • In Stock!
  • Order in the next hour 48 minutes to Ship TODAY
  • FREE Same-Day ShippingWhen ordered before 3PM ET
  • No Hassle Returns
  • ×
    Getting shipping methods...

Have a question about this product?

Price: $459.00

Choose Options

Start selecting options

Use the menu on the right to select available options.
After all options have been chosen, you can add to cart.

Choose Voltage:

Choose Fail Secure/Fail Safe:

Help Me Decide

  • Captured valves for high-abuse situations
  • Quik-Install bracket size: 1-3/4" vertical x 6" horizontal.
  • Closer body mounting hole spacing: 1" vertical x 4-5/16" horizontal.
  • Parallel Arm Mounting DC6210, allows inside application of closer on out-swinging doors. Closer is mounted on the push side, with the arm almost parallel to the face of the door. Arm does not project from the opening
  • Meets A156.4, Grade 1.
  • UL /ULC / UL10c Listed for fire and cycle requirements.
  • Barrier-Free Code Compliance, conform to the 5 lbf. maximum door opening force
    requirement for non-fire-rated interior hinged doors
  • Latching speed valve, closing speed valve standard.
  • Multiple backcheck location valve and backcheck intensity valve standard.
  • Standard: high lubricity extreme temperature hydraulic fluid

Choose Finish:

Overview

  • Electric strike for use with rim night latches having up to 3⁄4" bolt throw.
  • Designed to replace Replace Folger Adam 310-5.
  • Stainless Steel Construction
  • Accepts 3⁄4" Throw Latchbolt
  • Non-handed
  • Fail Secure standard, Fail Safe optional
  • Horizontally Adjustable
  • Plug Connectors
  • Furnished 24VDC standard with 12VDC available. AC operation optional with SO12 or SO24 rectifier kits

Available Options: Choose Options Above

  • UL Listed Burglary-Resistant and Electric Strike for fire doors and frames.
    A label for single doors and B label for double doors
  • Electric Strikes are furnished standard in US32D when finish is not specified
  • 1500 lbs. holding strength.
  • 70 lbs. impact strength.
  • For 16VAC Current, use SO-24 Rectifier Kit.
    Available as a special order in other finishes and with DS Dual Signal Switch. Call us directly to arrange your special order.
