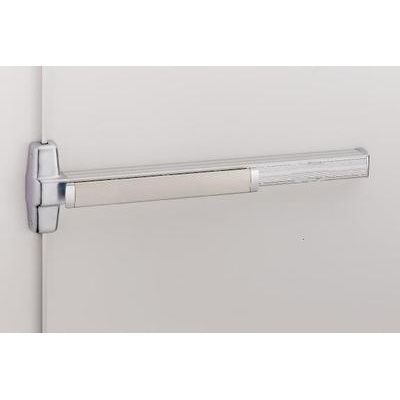

Surface Mounted UL Fire Rated Vertical Rod Device

Product Overview

• UL listed for Fire Exit Hardware.
• Exit Only function-Trim not included.
• Vertical Rods-standard rods accommodate 7’ door
• Devices are ANSI A156.3 – 2001 Grade 1.

Surface Mounted UL Fire Rated Vertical Rod Device

Technical Specifications

• Strikes-Top – 299F – Dull black, Bottom – 304L – Unfinished
• Latch Bolt Deadlocking Anti-friction Top & Bottom Bolt, 5/8" throw
• Non-handed except when the following device options are used- SS (Signal Switch).
• Dogging Feature- no mechanical Dogging, EL option available in 26D finish and 3' rail length.
• Device Centerline from Finished Floor 39-5/8"
• Top rod length is 34-15/16". Bottom rod length is 31-1/4"
• Door Undercut 1/4"
• Center Case Dimensions 8"x 2-3/4"x2-3/8"
• Mechanism Case Dimensions 2-1/4"x2-1/4"
• Top & Bottom Latch Case 4-1/2"x2-1/8" x 1-1/2"
• Projection -Pushbar Neutral – 3-13/16" Pushbar Depressed – 3-1/16"
  Available as a special order in other finishes and with RX,LX, or SS swithches and EL-Electric Latch Retraction and available in 4' length. Call us directly to arrange your special order.
