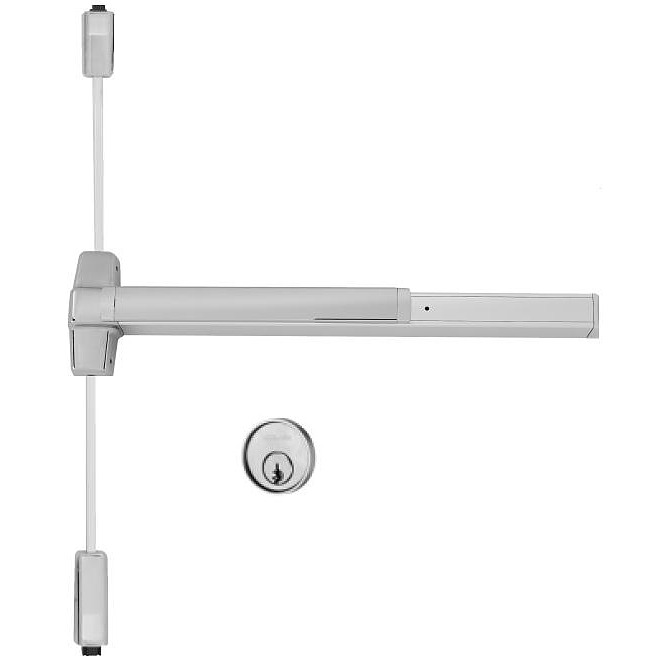

Von Duprin 9927NL-OP

Surface Mounted Vertical Rod Device with Night Latch Trim

or for better pricing

Price: $1,824.00 /each

SKU: 9927NL-OP

Choose Options Below

Von Duprin 9927NL-OP surface mounted vertical rod device with night latch trim. Series 98/99 exit devices with modern touchbar styling for heavy traffic applications. Device with night latch trim function, key retracts latchbolt.

  • Stock Item
  • Order in the next 51 minutes to ship TODAY
  • FREE Same-Day ShippingWhen ordered before 2PM ET
  • No Hassle Returns
  • ×
    Getting shipping methods...

Have a question about this product?

or for better pricing
Price: $1,824.00

Start selecting options

Use the menu on the right to select available options.
After all options have been chosen, you can add to cart.

Choose Rail Size:

3 FT
4 FT +$17.00

Help Me Decide

  • 3’ rail for 28” to 36”’ door width
  • 4’ rail for 34” to 48” door width

Choose Cylinder Rim:

Rim Cylinder Schlage C Keyway Satin Chrome (QH200) + $17.00 Recommended Rim Cylinder Schlage C Keyway Satin Chrome (QH200) +$17.00
No Rim Cylinder Needed

Help Me Decide

  • Rim cylinder includes 2 keys.

Choose FINISH:

US28-Anodized Aluminum US28-Anodized Aluminum
US26D-Satin Chrome + $208.00 US26D-Satin Chrome +$208.00
313 Duranodic Dark Bronze + $160.00 313 Duranodic Dark Bronze +$160.00

Overview

  • Device with night latch trim for metal doors 110NL-MD, key retracts latchbolt.
  • Night latch function, key retracts latch,door relocks automatically.
  • Optional pull required
  • Rim cylinder not included
  • Vertical Rods-standard rods accommodate 7’ door
  • For all types of single or double doors.

Available Options: Choose Options Above

More Info

  • Strikes Top - 299 – Dull black finish, Bottom – 248L4 & 304L - unfinished
  • Hex key dogging standard
  • Latch Bolt -  Deadlocking Anti-friction Top & Bottom Bolt, 5/8" throw
  • Covers stock hollow metal doors with 86 or 161 cutouts
  • Non-handed except when the following device options are used:
    SD (Special Dogging), or SS (Signal Switch).
  • UL listed for Panic Exit Hardware.
  • Devices are ANSI A156.3 – 2001 Grade 1.
  • Door thickness- 1-3/4" and 2-1/4" with standard centerlines
  • Device Centerline from Finished Floor 39-5/8"
  • Top rod length is 34-15/16". Bottom rod length is 31-1/4"
  • Door Undercut 1/4"
  • Center Case Dimensions 8" x 2-3/4" x 2-3/8"
  • Top & Bottom Latch Case 4-1/2" x 2-1/8" x 1-1/2"
  • Projection -Pushbar Neutral, 3-13/16" Pushbar Depressed, 3-1/16"
    Available as a special order in other finishes and with RX,LX, or SS switches.
    Call us directly to arrange your special order.
